DTC TABLE [AFS (ADAPTIVE FRONT LIGHTING SYSTEM)]

id0902g9960500

Note
•  The AFS OFF light flashes in the following pattern when the AFS is normal.
am6zzw00006145

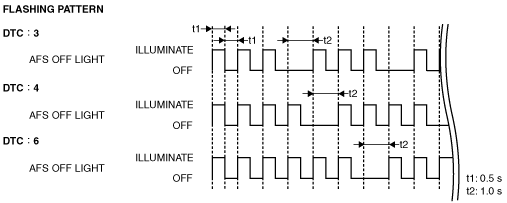

•  If the AFS has a malfunction, the AFS OFF light flashes in the following pattern and a DTC is output.
am6zzw00006146
•  All the detected DTCs are output repeatedly during DTC inspection.
•  If multiple DTCs are detected, the DTCs are output in the order from the lowest number.

—: Not applicable

DTC

Description

Reference

Flashing pattern

(AFS OFF light)

M-MDS display
6
B1041:54
Auto leveling system initialization error
(See DTC 6/DTC B1041:54 [AFS (ADAPTIVE FRONT LIGHTING SYSTEM)].)
4*1
B1043:01
Front auto leveling sensor circuit malfunction
(See DTC 4/DTC B1043:01 [AFS (ADAPTIVE FRONT LIGHTING SYSTEM)].)
3
B1044:01
Rear auto leveling sensor circuit malfunction
(See DTC 3/DTC B1044:01 [AFS (ADAPTIVE FRONT LIGHTING SYSTEM)].)
—
B10A3:86
Swivel actuator (LH) signal malfunction
(See DTC B10A3:86 [AFS (ADAPTIVE FRONT LIGHTING SYSTEM)].)
—
B10A3:87
Communication error to swivel actuator (LH)
(See DTC B10A3:87 [AFS (ADAPTIVE FRONT LIGHTING SYSTEM)].)
—
B10A4:86
Swivel actuator (RH) signal malfunction
(See DTC B10A4:86 [AFS (ADAPTIVE FRONT LIGHTING SYSTEM)].)
—
B10A4:87
Communication error to swivel actuator (RH)
(See DTC B10A4:87 [AFS (ADAPTIVE FRONT LIGHTING SYSTEM)].)
—
C1B00:54
Communication error to steering angle sensor
(See DTC C1B00:54 [AFS (ADAPTIVE FRONT LIGHTING SYSTEM)].)
—
U0001:88
CAN system communication error
(See FOREWORD [MULTIPLEX COMMUNICATION SYSTEM (L.H.D. (EXCEPT MZR-CD 2.2, MZR 2.0 DISI))].)
(See FOREWORD [MULTIPLEX COMMUNICATION SYSTEM (R.H.D. (EXCEPT MZR-CD 2.2, MZR 2.0 DISI))].)
(See FOREWORD [MULTIPLEX COMMUNICATION SYSTEM (L.H.D. (MZR 2.0 DISI))].)
(See FOREWORD [MULTIPLEX COMMUNICATION SYSTEM (R.H.D. (MZR 2.0 DISI))].)
(See FOREWORD [MULTIPLEX COMMUNICATION SYSTEM (L.H.D. (MZR-CD 2.2))].)
(See FOREWORD [MULTIPLEX COMMUNICATION SYSTEM (R.H.D. (MZR-CD 2.2))].)
—
U0100:00
Communication error to PCM
—
U0140:00
Communication error to BCM
—
U0155:00
Communication error to instrument cluster
—
U0401:00
Signal error from PCM
(See DTC U0401:00 [AFS (ADAPTIVE FRONT LIGHTING SYSTEM)].)
—
U0422:00
Signal error from BCM
(See DTC U0422:00 [AFS (ADAPTIVE FRONT LIGHTING SYSTEM)].)
—
U3000:49
AFS control module internal malfunction
(See DTC U3000:49 [AFS (ADAPTIVE FRONT LIGHTING SYSTEM)].)
—
U3003:16
Low power supply circuit voltage
(See DTC U3003:16 [AFS (ADAPTIVE FRONT LIGHTING SYSTEM)].)
—
U3003:17
High power supply circuit voltage
(See DTC U3003:17 [AFS (ADAPTIVE FRONT LIGHTING SYSTEM)].)

*1  :With front auto leveling sensor
