DTC U0010:88, U0498:68, 16:Er12, 26:Er81 [MULTIPLEX COMMUNICATION SYSTEM (R.H.D. (MZR 2.0 DISI))]


id0902m1002700

DTC

U0010:88

(16:Er12)

CAN system communication error

U0498:68

(26:Er81)

DETECTION CONDITION
Warning
•  Perform the following on-board diagnosis according to FOREWORD [MULTIPLEX COMMUNICATION SYSTEM (R.H.D. (MZR 2.0 DISI))] troubleshooting procedure.
•  CAN system-related harness malfunction
•  CAN system-related module malfunction
POSSIBLE CAUSE
•  Open or short circuit in wiring harness
•  Malfunction of connectors between information display, audio unit or car-navigation unit, climate control unit, Bluetooth unit and instrument cluster
•  Information display malfunction
•  Audio unit or car-navigation unit malfunction
•  Climate control unit malfunction
•  Bluetooth unit malfunction
•  Instrument cluster malfunction


Diagnostic procedure

Caution
•  When disconnecting the connector, verify that there is no looseness, damage, deformation, corrosion, or poor connection of the connector terminals.

Step

Inspection

Action

1
VERIFICATION BEFORE SERVICING
•  Are any DTCs, except the following, displayed?
―  U0010:88
―  U0498:68
―  16:Er12
―  26:Er81
Yes
No
Go to the next step.
2
INSPECTION OF CONTROL MODULE CONNECTOR OUTPUTTING DTCs
•  Inspect the terminal condition of the control module connector outputting DTCs and the mid-connector.
•  Are the connector terminals normal without damage, deformation, corrosion, or disconnection?
Yes
Go to the next step.
No
Repair or replace the connector, then go to Step 9.
3
INSPECTION OF POWER SUPPLY OF CONTROL MODULE OUTPUTTING DTCs
•  Refer to the terminal voltage table of the control module outputting DTCs to inspect the terminal voltage and fuse condition.
•  Is the power supply voltage normal?
Yes
Go to the next step.
No
Repair or replace the connector, then go to Step 9.
4
INSPECTION OF BODY GROUND CONDITION OF CONTROL MODULE OUTPUTTING DTCs
•  Inspect the body ground wires and ground point of the control module outputting DTCs.
•  Are the ground and ground point normal?
Yes
Go to the next step.
No
Repair or replace the connector, then go to Step 9.
5

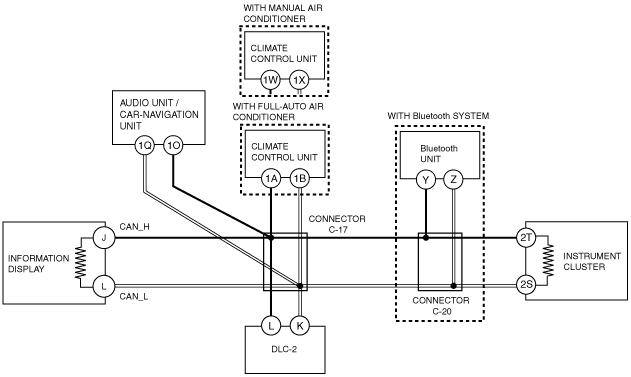

CAN SYSTEM RELATED WIRING HARNESS INSPECTION
•  CAN system related wiring harness inspection:
―  Short to ground
―  Short to power supply
―  Short between twisted pair wiring harness
―  Open circuit
•  Is the wiring harness normal?
Yes
Go to the next step.
No
Repair or replace the connector, then go to Step 9.
6
INSPECT INFORMATION DISPLAYv
•  Disconnect the information display connector.
•  Measure the resistance between the following information display connector terminals:
―  Between terminal J and terminal L (part side)
•  Is the resistance 118—130 ohms?
Yes
Go to the next step.
No
Replace the information display, then go to Step 9.
7
INSPECT INSTRUMENT CLUSTER
•  Disconnect the instrument cluster connector.
•  Measure the resistance between the following instrument cluster connector terminals:
―  Between terminal 2T and terminal 2S (part side)
•  Is the resistance 118—130 ohms?
Yes
Go to the next step.
No
Replace the instrument cluster, then go to Step 9.
8
CAN RELATED MODULE VERIFICATION
•  Remove only one of the CAN-related modules.
•  Clear DTCs.
•  Inspect the DTCs of all modules.
•  Are DTCs U0010:88, U0498:68, 16:Er12, 26:Er81 displayed?
Yes
Reinstall the removed module, remove another module and perform the same inspection. Inspect all of the CAN-related modules using the same procedure. After inspecting all of the modules, go to the next step.
No
Replace the removed module.
9
AFTER REPAIR VERIFICATION
•  Connect all of the modules.
•  Clear DTCs.
•  Inspect the DTCs.
•  Are DTCs displayed?
Yes
Perform the CAN system on-board diagnosis again according to the troubleshooting procedure
No
DTC troubleshooting completed.
