DTC B11CB:11 [REAR VEHICLE MONITORING SYSTEM]

id0902z2886200

DESCRIPTION

RVM warning indicator light (RH) circuit malfunction

DETECTION CONDITION

•  Short to ground in RVM warning indicator light (RH) circuit.

POSSIBLE CAUSE

•  RVM warning indicator light (RH) connector or terminals malfunction

•  RVM warning indicator light (RH) malfunction

•  Rear vehicle monitoring control module (LH) connector or terminals malfunction

•  Short to ground in wiring harness between the following terminals:

―  RVM warning indicator light (RH) terminal A—Rear vehicle monitoring control module (LH) terminal D

―  RVM warning indicator light (RH) terminal B—Rear vehicle monitoring control module (LH) terminal C

•  Rear vehicle monitoring control module (LH) malfunction

DESCRIPTION	RVM warning indicator light (RH) circuit malfunction
DETECTION CONDITION	• Short to ground in RVM warning indicator light (RH) circuit.
POSSIBLE CAUSE	• RVM warning indicator light (RH) connector or terminals malfunction • RVM warning indicator light (RH) malfunction • Rear vehicle monitoring control module (LH) connector or terminals malfunction • Short to ground in wiring harness between the following terminals: ― RVM warning indicator light (RH) terminal A—Rear vehicle monitoring control module (LH) terminal D ― RVM warning indicator light (RH) terminal B—Rear vehicle monitoring control module (LH) terminal C • Rear vehicle monitoring control module (LH) malfunction

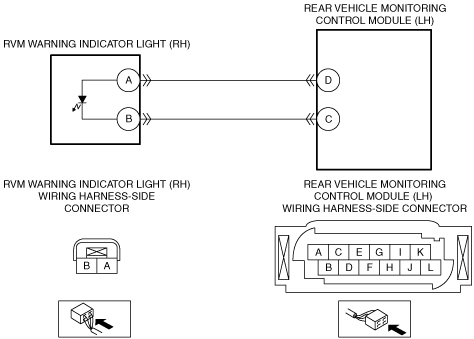

System Wiring Diagram

am6zzw00006027

Diagnostic Procedure

STEP	INSPECTION		ACTION
1	INSPECT RVM WARNING INDICATOR LIGHT (RH) CONNECTOR AND TERMINALS • Switch the ignition to off. • Disconnect the negative battery cable. • Disconnect the RVM warning indicator light (RH) connector. • Inspect the connector and terminals (corrosion, damage, pin disconnection). • Is there any malfunction?	Yes	Repair or replace the connector or terminals, then go to Step 5.
1		No	Go to the next step.
2	INSPECT RVM WARNING INDICATOR LIGHT (RH) • Inspect the RVM warning indicator light (RH). (See RVM WARNING INDICATOR LIGHT INSPECTION.) • Is there any malfunction?	Yes	Replace the RVM warning indicator light (RH), then go to Step 5. (See RVM WARNING INDICATOR LIGHT REMOVAL/INSTALLATION.)
2		No	Go to the next step.
3	INSPECT REAR VEHICLE MONITORING CONTROL MODULE (LH) CONNECTOR AND TERMINALS • Disconnect the rear vehicle monitoring control module (LH) connector. • Inspect the connector and terminals (corrosion, damage, pin disconnection). • Is there any malfunction?	Yes	Repair or replace the connector or terminals, then go to Step 5.
3		No	Go to the next step.
4	INSPECT RVM WARNING INDICATOR LIGHT (RH) CIRCUIT FOR SHORT TO GROUND • RVM warning indicator light (RH) and rear vehicle monitoring control module (LH) connectors are disconnected. • Inspect for continuity between the following terminals (wiring harness-side) and body ground: ― RVM warning indicator light (RH) terminal A ― RVM warning indicator light (RH) terminal B • Is there continuity?	Yes	Repair or replace the wiring harness for a possible short to ground, then go to the next step.
4		No	Go to the next step.
5	VERIFY TROUBLESHOOTING COMPLETED • Make sure to reconnect all disconnected connectors. • Reconnect the negative battery cable. • Clear the DTC from the rear vehicle monitoring control module using the M-MDS. (See CLEARING DTC [REAR VEHICLE MONITORING SYSTEM].) • Verify the rear vehicle monitoring system DTC using the M-MDS. (See DTC INSPECTION [REAR VEHICLE MONITORING SYSTEM].) • Is the same DTC present?	Yes	Replace the rear vehicle monitoring control module (LH), then go to the next step. (See REAR VEHICLE MONITORING CONTROL MODULE REMOVAL/INSTALLATION.)
5		No	Go to the next step.
6	VERIFY THAT NO OTHER DTCs ARE PRESENT • Are any DTCs present?	Yes	Go to the applicable DTC inspection. (See DTC TABLE [REAR VEHICLE MONITORING SYSTEM].)
6		No	DTC troubleshooting completed.
