ENERGY-ABSORBING FORM REMOVAL/INSTALLATION

id091000888800

1.  Disconnect the negative battery cable.

2.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION)

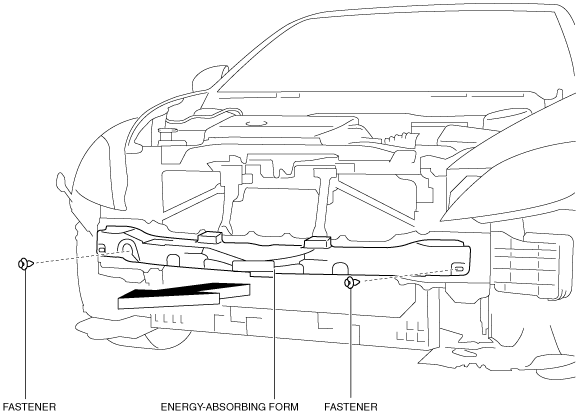

3.  Remove the fasteners and remove the energy-absorbing form in the direction of the arrow shown in the figure.

am6zzw00006784

4.  Install in the reverse order of removal.
