FRONT BUMPER REMOVAL/INSTALLATION

id091000405100

1.  Disconnect the negative battery cable.

2.  Remove the radiator grille. (See RADIATOR GRILLE REMOVAL/INSTALLATION)

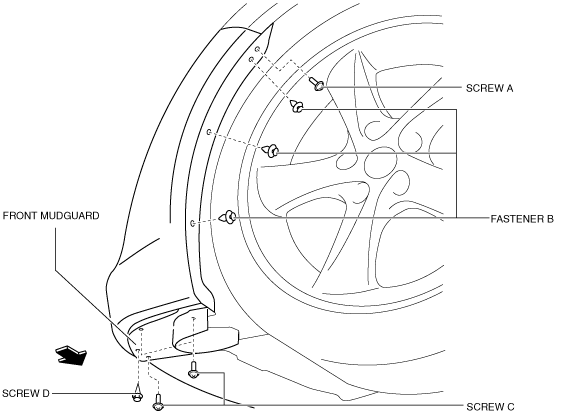

3.  Remove screws A, fasteners B, screws C and screws D, and set the front mudguard out of the way in the direction of the arrow shown in the figure.

am6zzw00006337

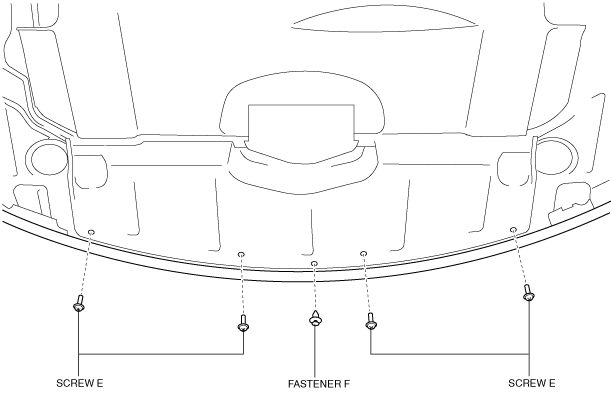

4.  Remove screws E and fastener F.

am6zzw00001206

5.  Remove the fasteners G.

am6zzw00006783

6.  Remove the front bumper in the direction of the arrow (2) while keeping it open in the direction of the arrow (1) shown in the figure.

am6zzw00006338

Note

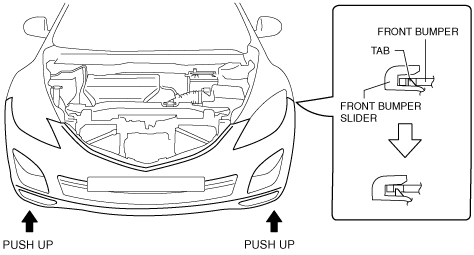

•  When remove the front bumper, push up the position of the arrow shown in the figure.

am6zzw00006339

Caution

•  The front bumper and front bumper slider are engaged firmly. If they are disengaged forcibly the bumper could fall and be damaged. Perform the servicing carefully when disengaging the front bumper from the front bumper slider.

•  When disengaging the front bumper from the front bumper slider, the front bumper could fall and be damaged. Support the front bumper so that it does not fall.

7.  Disconnect the front fog light connector. (Vehicles with front fog lights)

8.  Disconnect the ultrasonic sensor connector. (Vehicles with parking sensor)

9.  Install in the reverse order of removal.

10.  Adjust the front fog light aiming for vehicles with front fog lights. (See FRONT FOG LIGHT AIMING)

Front Bumper Installation Note

1.  Spread the front bumper ends apart.

2.  Assemble the front bumper to the body.

3.  Press the front bumper connecting area in the direction of the arrow shown in the figure to engage with the front bumper slider.

am6zzw00004598
