REAR DOOR LATCH SWITCH INSPECTION

id091400430900

1.  Fully open the rear door glass.

2.  Disconnect the negative battery cable.

3.  Remove the following parts:

(1)  Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

(2)  Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION.)

(3)  Rear door quarter glass (See REAR DOOR QUARTER GLASS REMOVAL/INSTALLATION.)

(4)  Rear door glass (See REAR DOOR GLASS REMOVAL/INSTALLATION.)

(5)  Rear door module panel (See REAR DOOR MODULE PANEL REMOVAL/INSTALLATION.)

(6)  Rear door latch and lock actuator (See REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

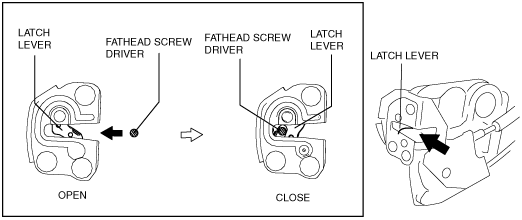

4.  Press the latch in using a flathead screwdriver to inspect the latch lever condition.

am6zzw00006929

5.  Verify that the continuity is as indicated in the table.

am6zzw00004520

•  If not as indicated in the table, replace the rear door latch and lock actuator.

am2zzw00000690
