TRUNK LID OPENER SWITCH INSPECTION

id091400445500

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Recess (See RECESS REMOVAL/INSTALLATION.)

(2)  Trunk lid trim (See TRUNK LID TRIM REMOVAL/INSTALLATION.)

(3)  High-mount brake light (4SD)(See HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION.)

(4)  Trunk lid opener switch (See TRUNK LID OPENER SWITCH REMOVAL/INSTALLATION.)

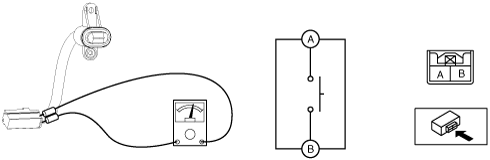

3.  Verify the continuity of trunk lid opener switch terminals A and B.

am6zzw00005799

4.  Verify that the continuity is as indicated in the table.

am6zzw00001752

•  If not as indicated in the table, replace the trunk lid opener switch.
