BONNET RELEASE CABLE REMOVAL/INSTALLATION

id091400456800

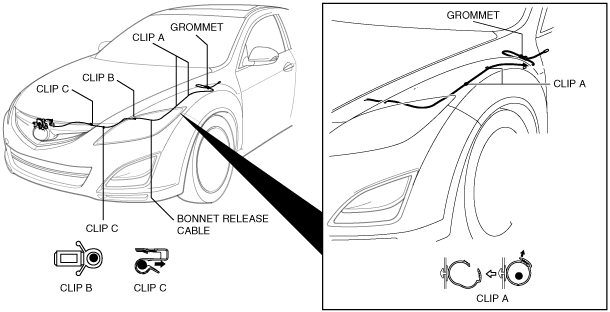

L.H.D.

1.  Remove the front mudguard. (See FRONT MUDGUARD REMOVAL/INSTALLATION.)

2.  Remove the bonnet release cable from clips A.

3.  Remove the clips B.

4.  Remove the bonnet release cable from clips C.

5.  Disconnect the bonnet latch from the bonnet release cable.

6.  Remove the grommet.

7.  Remove the bonnet release cable from outside of the vehicle.

am6zzw00005427

8.  Install in the reverse order of removal.

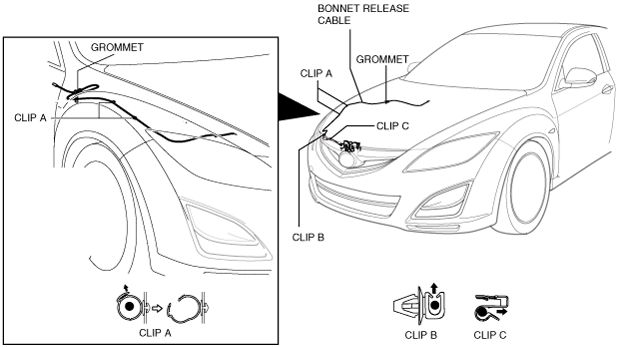

R.H.D.

1.  Remove the front mudguard. (See FRONT MUDGUARD REMOVAL/INSTALLATION.)

2.  Remove the bonnet release cable from clips A.

3.  Remove the bonnet release cable from clips B.

4.  Remove the bonnet release cable from clips C.

5.  Disconnect the bonnet latch from the bonnet release cable.

6.  Remove the grommet.

7.  Remove the bonnet release cable from outside of the vehicle.

am6zzw00005428

8.  Install in the reverse order of removal.
