REAR SPOILER INSTALLATION

id091600802600

4SD

Warning

•  Using a utility knife with bare hands could cause injury. Always wear gloves when using a utility knife.

Note

•  Double-sided adhesive tape has already been adhered to a new rear spoiler for installation.

1.  When installing a new rear spoiler, perform the following procedure:

1.  Remove the double-sided adhesive tape on the trunk lid.

2.  Remove any grease or dirt from the affixing surface of the trunk lid.

2.  If the rear spoiler is to be reused, perform the following procedure:

1.  Remove the double-sided adhesive tape remaining on the rear spoiler and trunk lid after removal.

2.  Remove any grease and dirt from the double-sided adhesive tape affixing area.

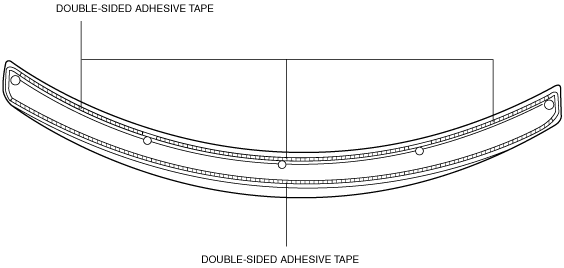

3.  Affix double-sided adhesive tape to the position shown in the figure.

am6zzw00004568

Note

•  Use the 3M GT-7112-type of double-sided adhesive tape, or the equivalent.

3.  Peel off the backing from the double-sided adhesive tape approx. 3 cm {1 in} from the end, and fold it back to the surface of the rear spoiler.

4.  Install the rear spoiler in the direction of the arrow shown in the figure while inserting the guide pins in the vehicle side.

am6zzw00000773

Caution

•  When the rear spoiler is installed, be careful not to damage the trunk lid with the stud bolt.

5.  Peel off the backing from the double-sided adhesive tape and attach it by applying pressure.

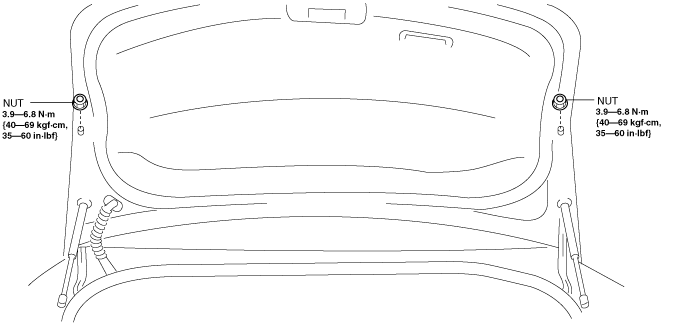

6.  Tighten the nuts.

am6zzw00002845

5HB

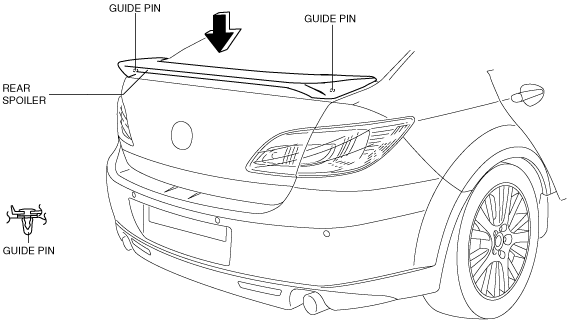

1.  Install the rear spoiler in the direction of the arrow shown in the figure while inserting the guide pins in the vehicle side.

am6zzw00000774

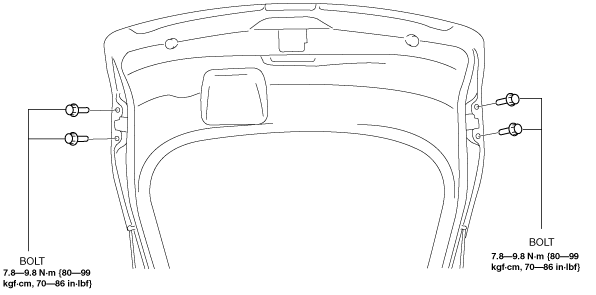

2.  Tighten the bolts.

am6zzw00000626

Wagon

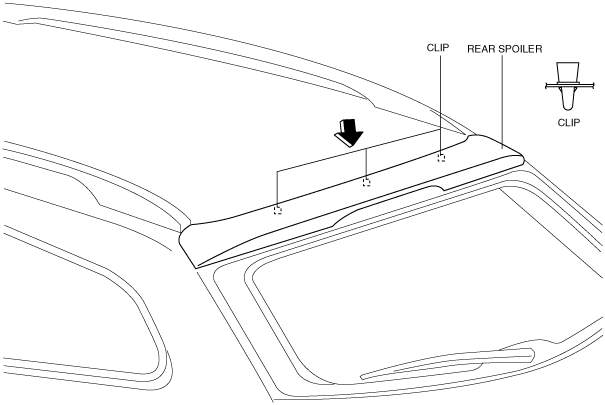

1.  Push the rear spoiler in the direction of the arrow shown in the figure and installe the clips.

am6zzw00003417

2.  Open the liftgate.

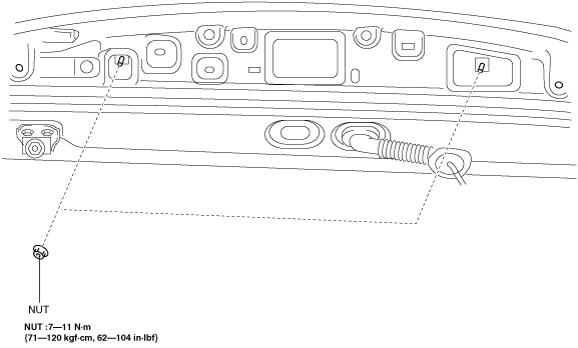

3.  Tighten the nuts.

am6zzw00001606

4.  Install the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

5.  Tighten the bolts.

am6zzw00003415
