DECORATION PANEL REMOVAL/INSTALLATION

id091700788200

Driver-side

1.  Remove the upper panel. (See UPPER PANEL REMOVAL/INSTALLATION)

2.  Pull the decoration panel in the direction of the arrow in the order of (1) and (2), then remove it while detaching the hooks A and clips B.

L.H.D.

am6zzw00001662

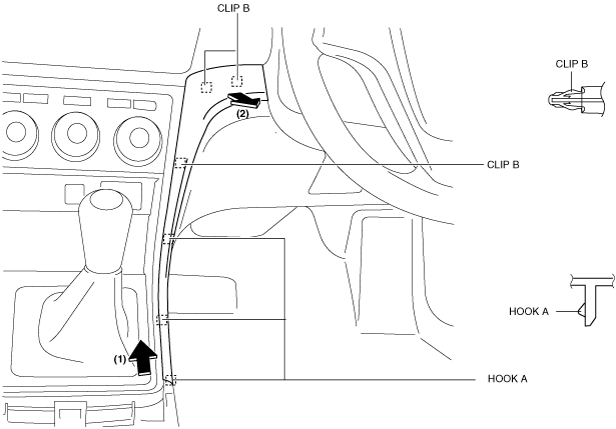

R.H.D.

am6zzw00001663

3.  Install in the reverse order of removal.

Passenger-side

1.  Remove the upper panel. (See UPPER PANEL REMOVAL/INSTALLATION)

2.  Pull the decoration panel in the direction of the arrow in the order of (1) and (2), then remove it while detaching the hooks A clips B.

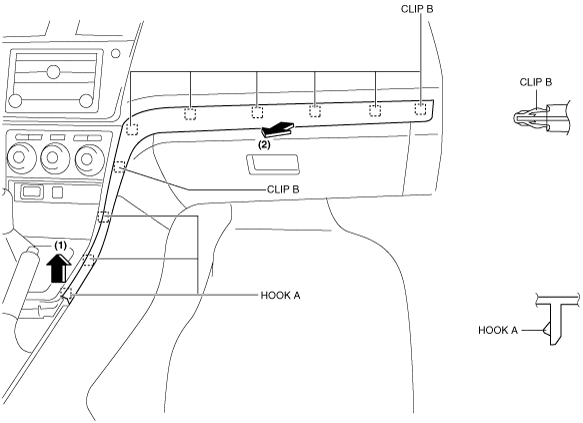

L.H.D.

am6zzw00001664

R.H.D.

am6zzw00001665

3.  Install in the reverse order of removal.
