FRONT DOOR TRIM REMOVAL/INSTALLATION

id091700802500

Driver-side

1.  Disconnect the negative battery cable.

2.  Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION)

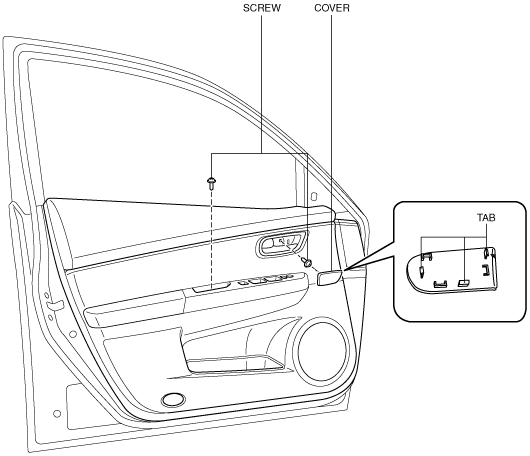

3.  Pull the cover of inner handle and remove it while detaching tabs.

am6zzw00001765

4.  Remove the screws.

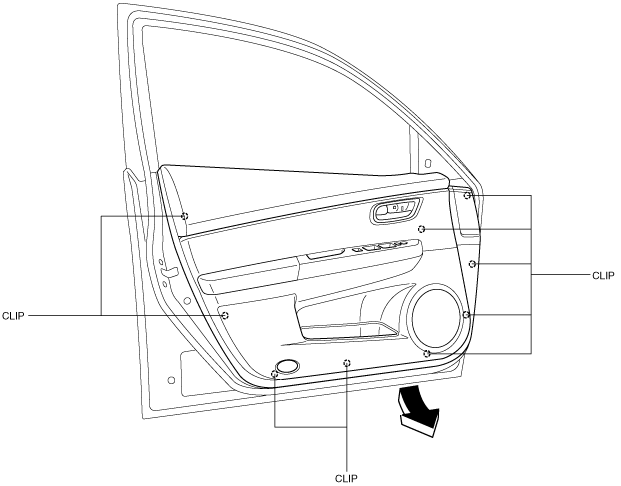

5.  Pull in the direction of the arrow shown in the figure and remove clips from the door inner panel using a fastener remover.

am6zzw00001766

6.  Remove the front door trim in the direction of the arrow shown in the figure.

am6zzw00001767

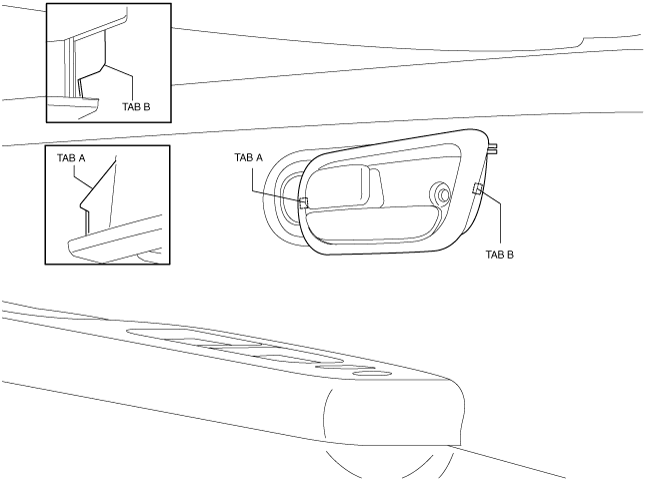

7.  Remove the inner handle and move the front door trim shown in the figure.

am6zzw00001768

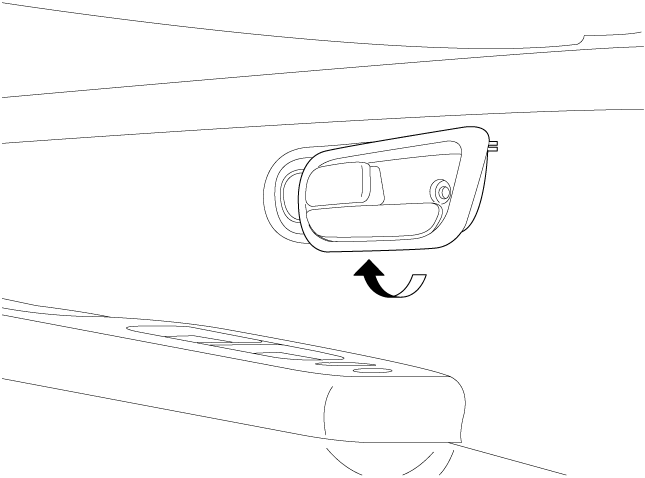

8.  Turn the inner handle 90° in the direction of the arrow and remove it from the front door trim.

am6zzw00001769

9.  Disconnect the driver-side power outer mirror switch connector and power window main switch connector.

10.  Remove the door courtesy illumination bulb socket.

11.  Install in the reverse order of removal.

Passenger-side

1.  Disconnect the negative battery cable.

2.  Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION)

3.  Pull the cover of inner handle and remove it while detaching tabs.

am6zzw00001772

4.  Remove the front door handle cover.

5.  Remove the screws.

6.  Pull in the direction of the arrow shown in the figure and remove clips from the door inner panel using a fastener remover.

am6zzw00002709

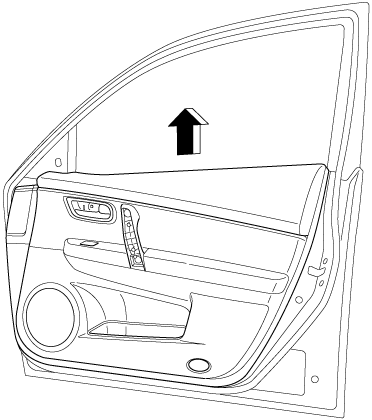

7.  Remove the front door trim in the direction of the arrow shown in the figure.

am6zzw00002710

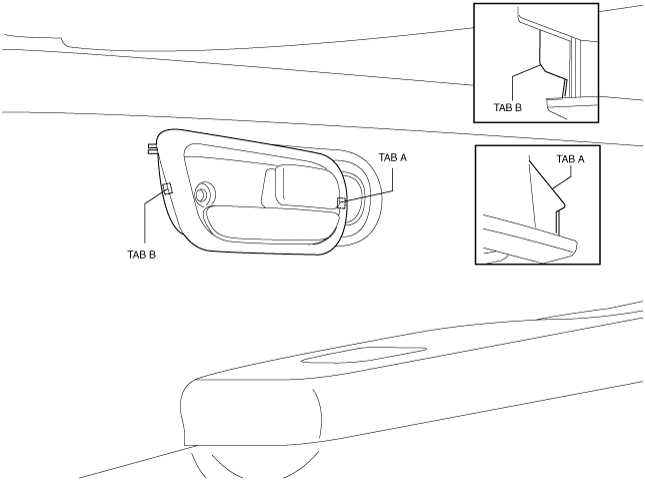

8.  Remove the inner handle and move the front door trim shown in the figure.

am6zzw00001770

9.  Turn the inner handle 90° in the direction of the arrow and remove it from the front door trim.

am6zzw00002711

10.  Disconnect the power window subswitch connector.

11.  Remove the door courtesy illumination bulb socket.

12.  Install in the reverse order of removal.
