LIFTGATE SIDE TRIM REMOVAL/INSTALLATION

id091700803700

5HB

1.  Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION)

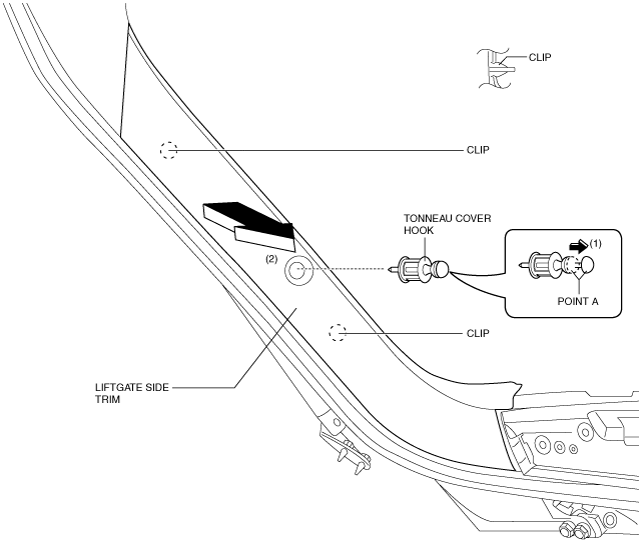

2.  Pull the point A of the strap hanger in the direction of the arrow (1) shown in the figure.

am6zzw00007494

3.  Remove the tonneau cover hook.

4.  Pull the liftgate side trim in the direction of the arrow (2) shown in the figure, detach the clips.

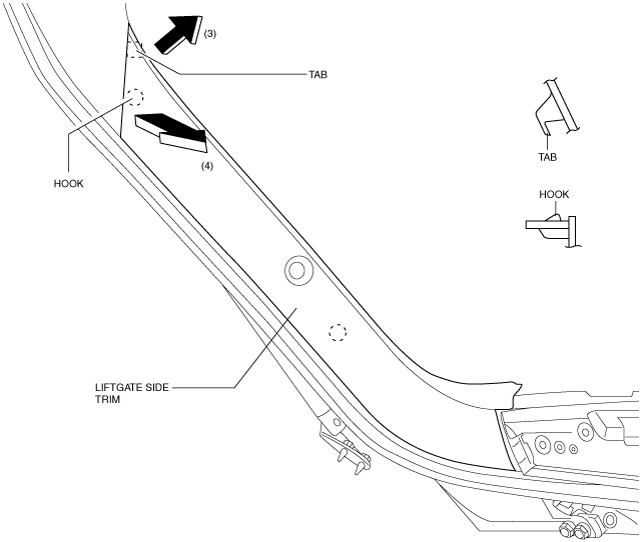

5.  Detach tab while pulling the liftgate side trim in the direction of the arrow (3) shown in the figure, then detach hook while pulling in the direction of the arrow (4).

am6zzw00007262

6.  Remove the liftgate side trim.

7.  Install in the reverse order of removal.

Wagon

1.  Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION)

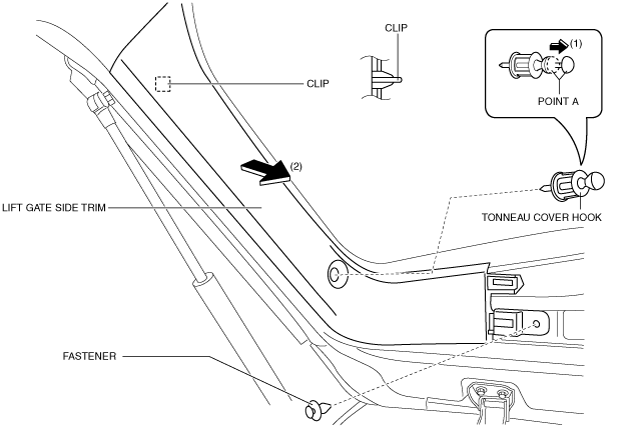

2.  Pull the point A of the strap hanger in the direction of the arrow (1) shown in the figure.

am6zzw00007495

3.  Remove the tonneau cover hook.

4.  Remove the fastener.

5.  Pull the liftgate side trim in the direction of the arrow (2) shown in the figure, detach the clip.

6.  Remove the liftgate side trim.

7.  Install in the reverse order of removal.
