SHIFT PANEL REMOVAL/INSTALLATION

id091700898400

1.  Remove the shift knob. (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [G35M-R]) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [G66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [A26M-R].)

2.  Pull the shift panel in the direction of the arrow shown in the figure and remove it while detaching the hooks.

ATX

am6zzw00001655

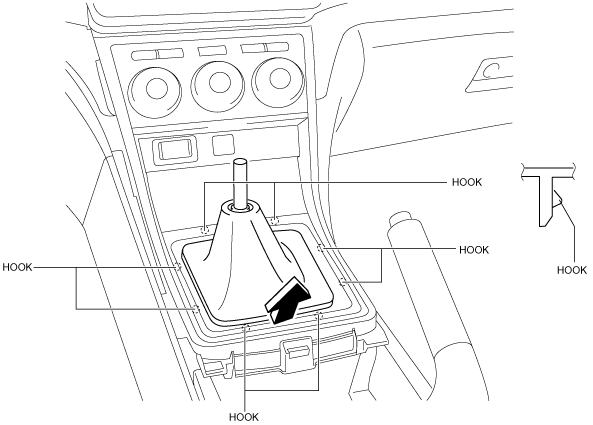

MTX

am6zzw00001656

3.  Install in the reverse order of removal.
