FRONT FOG LIGHT REMOVAL/INSTALLATION

id091800802100

1.  Disconnect the negative battery cable.

2.  Remove the screw A.

am6zzw00006047

3.  Pull the front fog light cover in the direction of the arrow while detaching tab A and tab B.

4.  Remove the screw B.

am6zzw00006048

5.  Disconnect the connector.

am6zzw00006116

6.  Remove the clip.

7.  Remove the adjustment bolt.

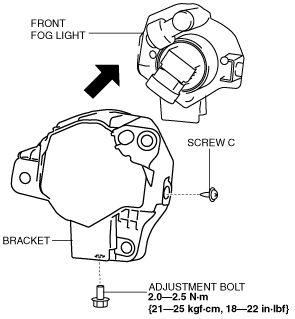

am6zzw00006149

8.  Remove the screw C.

9.  Remove the front fog light in the direction of the arrow shown in the figure.

10.  Remove the front fog light.

11.  Install in the reverse order of removal.

12.  Adjust the front fog light aiming. (See FRONT FOG LIGHT AIMING.)
