FRONT FOG LIGHT AIMING

id091800802200

1.  Make a front fog light adjustment screen as shown in the figure using double-weight, white paper.

am6zzw00006120

2.  Adjust the tire pressure to the specification.

3.  Position the unloaded vehicle on a flat, level surface.

4.  Seat one person in the driver’s seat.

5.  Line up the front fog lights with the white screen at a distance of 3 m {9.8 ft} apart.

am6zzw00006753

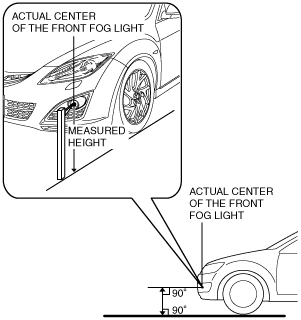

6.  Measure the height at the center of the front fog light.

Note

•  Since the height of the vehicle varies depending on the vehicle situation, measure the height of the center of the front fog light using the actual vehicle.

am6zzw00006122

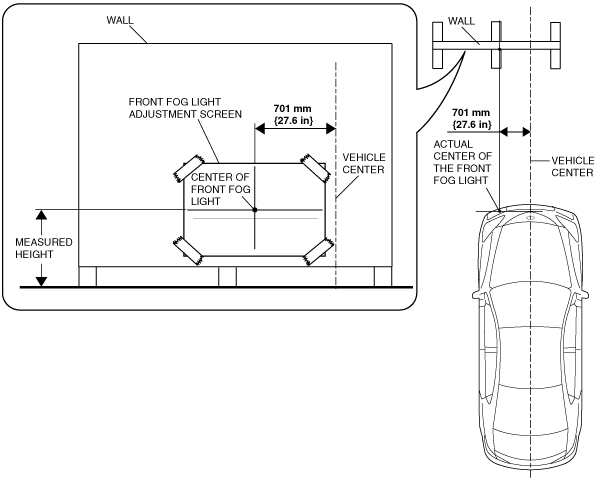

7.  Align the center of the adjustment screen with the position indicated in the figure, then affix the screen to the wall.

am6zzw00006221

8.  Place an object in front of the fog light not being adjusted to block its light beam.

9.  Start the engine so that the battery remains charged.

10.  Turn the front fog lights on.

11.  Verify that the brightness border line of the front fog light is at the position indicated on the adjustment screen.

•  If the brightness border line is not at the position indicated on the adjustment screen, perform the following adjustment.

1.  Remove the front fog light. (See FRONT FOG LIGHT REMOVAL/INSTALLATION.)

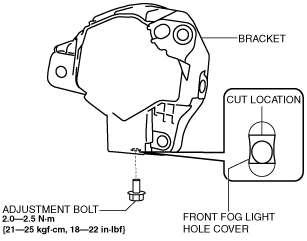

2.  Remove the adjustment bolt and cut the front fog light hole cover at the position shown in the figure.

am6zzw00006859

3.  Temporarily tighten the adjustment bolt.

4.  Install the screw A.

am6zzw00006223

5.  Move the front fog light in the direction of the arrow shown in the figure to adjust the brightness border line to the position indicated on the adjustment screen.

am6zzw00006126

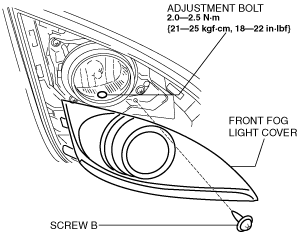

6.  Tighten the adjustment bolt.

am6zzw00006860

7.   Install the front fog light cover.

8.   Install the screw B.
