COMBINATION SWITCH REMOVAL/INSTALLATION

id091800802500

Warning

•  Handling the air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS.) (See AIR BAG SYSTEM SERVICE CAUTIONS.)

1.  Switch the ignition to off.

2.  Disconnect the negative battery cable and wait for 1 min or more.

3.  Remove the following parts:

(1)  Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

(2)  Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].) (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)

(3)  Clock spring (See CLOCK SPRING REMOVAL/INSTALLATION.)

4.  Disconnect the connectors.

am6zzw00006872

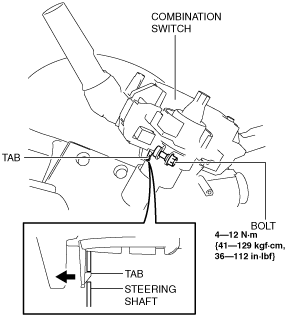

5.  Remove the bolt.

am6zzw00002131

6.  Detach the tab.

7.  Remove the combination switch.

8.  Install in the reverse order of removal.

(See Combination Switch Installation Note.)

Combination Switch Installation Note

1.  Align the combination switch rib with the steering shaft guide and press the combination switch until it contacts.

am2zzw00002198
