LIGHT SWITCH REMOVAL/INSTALLATION

id091800802800

1.  Disconnect the negative battery cable.

2.  Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

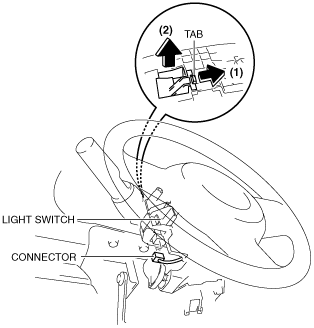

Vehicles with light switch on left side

am6zzw00002133

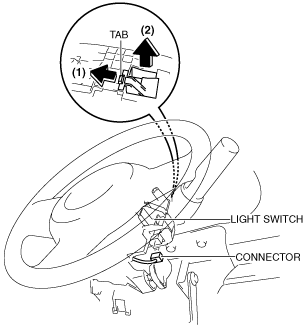

Vehicles with light switch on right side

am6zzw00003480

4.  Release the tab in the direction of the arrow (1) shown in the figure and remove the light switch in the direction of the arrow (2).

5.  Install in the reverse order of removal.
