WIPER AND WASHER SWITCH REMOVAL/INSTALLATION

id091900800200

Vehicles With Wiper and Washer Switch on Left Side

1.  Disconnect the negative battery cable.

2.  Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

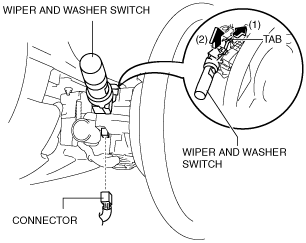

am6zzw00003555

4.  Release the tab in the direction of the arrow (1) shown in the figure, pull up the wiper and washer switch in the direction of the arrow (2), and remove it.

5.  Install in the reverse order of removal.

Vehicles With Wiper and Washer Switch on Right Side

1.  Disconnect the negative battery cable.

2.  Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

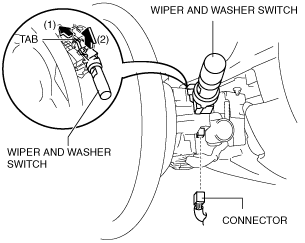

am2zzw00000501

4.  Release the tab in the direction of the arrow (1) shown in the figure, pull up the wiper and washer switch in the direction of the arrow (2), and remove it.

5.  Install in the reverse order of removal.
