WINDSHIELD WIPER MOTOR REMOVAL/INSTALLATION

id091900800900

1.  Disconnect the negative battery cable.

2.  Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

3.  Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION.)

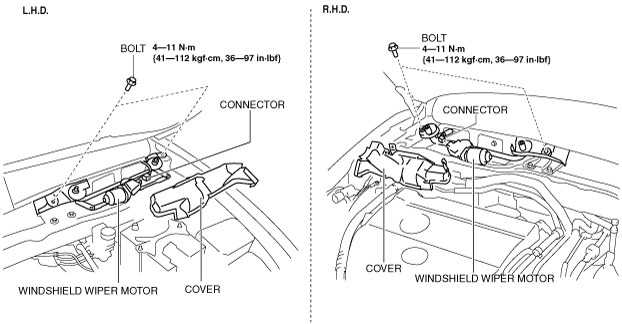

4.  Remove the cover, and remove the bolt.

am6zzw00005801

5.  Remove the windshield wiper motor.

6.  Install in the reverse order of removal.
