REAR WASHER MOTOR REMOVAL/INSTALLATION

id091900802600

1.  Disconnect the negative battery cable.

2.  Remove the front mudguard (RH). (See FRONT MUDGUARD REMOVAL/INSTALLATION.)

3.  Remove in the order indicated in the table.

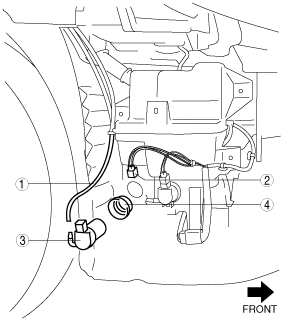

am6zzw00000392

1	Rear washer hose
2	Rear washer motor connector
3	Rear washer motor
4	Grommet

4.  Install in the reverse order of removal.
