HEADLIGHT CLEANER HOSE REMOVAL/INSTALLATION

id091900803100

1.  Disconnect the negative battery cable.

2.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

3.  Disconnect the headlight cleaner hose A from the joint pipe.

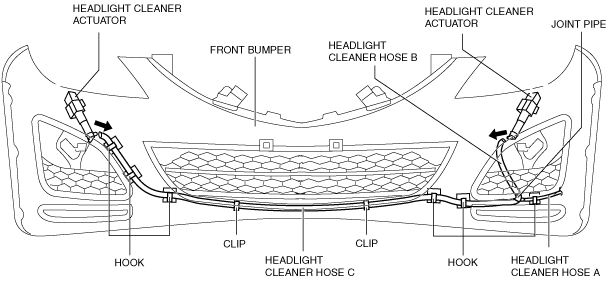

am6zzw00006240

4.  Remove the headlight cleaner hose A from the hook.

5.  Remove the headlight cleaner hose A.

6.  Disconnect the headlight cleaner hose B from the headlight cleaner actuator.

7.  Disconnect the headlight cleaner hose B from the joint pipe.

8.  Remove the headlight cleaner hose B.

9.  Disconnect the headlight cleaner hose C from the headlight cleaner actuator.

10.  Disconnect the headlight cleaner hose C from the joint pipe.

11.  Remove the headlight cleaner hose C from the clips.

12.  Remove the headlight cleaner hose C from the hooks.

13.  Remove the headlight cleaner hose C.

14.  Install in the reverse order of removal.
