HEADLIGHT CLEANER CONTROL MODULE REMOVAL/INSTALLATION


id091900806000

1.  Disconnect the negative battery cable.

2.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

3.  Remove the connector B in the indicated of the arrow (2), while push the tab in the indicated of the arrow (1).

am6zzw00006862

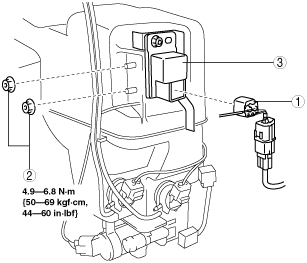

4.  Remove in the order indicated in the table.

am6zzw00006863

1
Connector
2
Nut
3
Headlight cleaner control module

5.  Install in the reverse order of removal.
