ANTENNA FEEDER NO.4 INSPECTION

id092000813200

1.  Disconnect the negative battery cable.

2.  Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

3.  Disconnect antenna feeder No.3.

am6zzw00003240

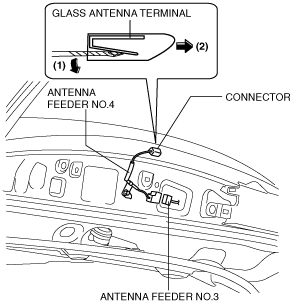

4.  Disconnect the connector in the direction of the arrow (2) shown in the figure while pressing the glass antenna terminal in the direction of the arrow (1).

5.  Verify that the continuity between antenna feeder No.4 terminals is as indicated in the table.

am6zzw00006824

•  If not as indicated in the table, replace antenna feeder No.4.

am6zzw00006825
