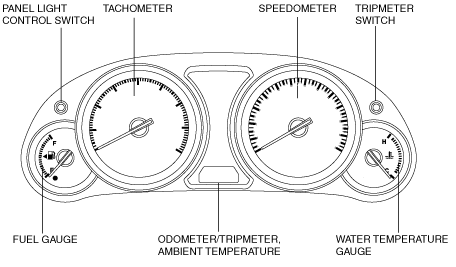

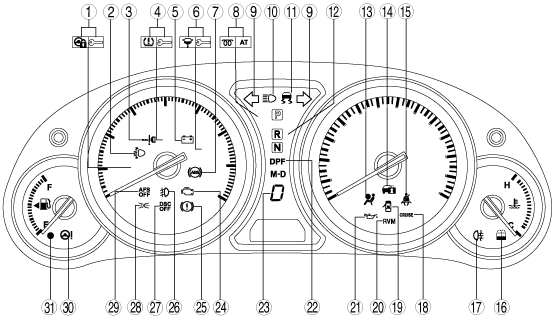

1

Steering lock fail warning light

Keyless control module

×

Flashes if the steering lock cannot be unlocked.

With advanced keyless entry and push button start system

Malfunction warning light

PCM

×

Malfunction warning light illumination request.

(See DRIVE-BY-WIRE CONTROL OPERATION [MZR 2.0 DISI].)

(See DRIVE-BY-WIRE CONTROL OPERATION [MZR 1.8, MZR 2.0, MZR 2.5].)

With malfunction warning light

2

Headlight auto leveling warning light

Auto leveling control module

—

The headlight auto leveling system warning light illuminates if a malfunction in the auto leveling system is detected.

With headlight auto leveling system

3

Keyless indicator light (green)

Keyless control module

×

Illuminates when start knob is pressed.

With advanced keyless entry and push button start system

Keyless warning light (red)

Illuminates or flashes when keyless control module has malfunction.

4

Tire pressure monitoring system (TPMS) warning light

Keyless control module

×

If the TPMS system is malfunctioning or the tire pressure is abnormal, the tire pressure warning light remains illuminated.

With TPMS

Malfunction warning light

PCM

×

Malfunction warning light illumination request.

(See DRIVE-BY-WIRE CONTROL OPERATION [MZR 2.0 DISI].)

(See DRIVE-BY-WIRE CONTROL OPERATION [MZR 1.8, MZR 2.0, MZR 2.5].)

With malfunction warning light

5

Generator warning light

PCM

×

Illuminates if the generator output is not normal.

—

6

Sediment warning light

PCM

×

Illuminates when moisture or sedimentation in the fuel filter reaches a certain level or more.

MZR-CD (RF Turbo), MZR-CD 2.2

Malfunction warning light

PCM

×

Malfunction warning light illumination request.

(See DRIVE-BY-WIRE CONTROL OPERATION [MZR 2.0 DISI].)

(See DRIVE-BY-WIRE CONTROL OPERATION [MZR 1.8, MZR 2.0, MZR 2.5].)

With malfunction warning light

7

ABS warning light

ABS HU/CM,

DSC HU/CM

×

If the ABS/DSC system is malfunctioning, the ABS warning light remains illuminated.

(See ON-BOARD DIAGNOSTIC SYSTEM FUNCTION [DYNAMIC STABILITY CONTROL (DSC)].)

—

8

AT warning light

TCM

×

The AT warning light illuminates to alert the driver of a malfunction in the automatic transaxle.

ATX

Glow indicator light

PCM

×

Illuminates when the glow system is operating.

MZR-CD (RF Turbo), MZR-CD 2.2

9

Turn indicator light

BCM

×

—

10

High-beam indicator light

BCM

×

When the headlight (high-beam) illuminates, the high-beam indicator light illuminates.

—

11

DSC indicator light

DSC HU/CM

×

With DSC

12

Selector indicator light

TCM

×

The selector indicator light displays the selector lever position.

ATX

13

Air bag system warning light

SAS control module

×

Illuminates or flashes when SRS air bag system has malfunction.

—

14

Security light

Keyless control module

×

Illuminates or flashes when immobilizer system has malfunction.

With advanced keyless entry and push button start system

PCM

With keyless entry system

15

Seat belt warning light

SAS control module

×

When the driver’s seat belt is not fastened, the seat belt warning light illuminates.

—

16

Washer fluid level warning light

Washer fluid level sensor

—

When the washer fluid-level is low, the washer fluid level warning light illuminates.

With washer fluid level sensor

17

Rear fog light indicator light

BCM

×

When the rear fog light illuminates, the rear fog light indicator light illuminates.

With rear fog light

18

Cruise main indicator light (amber)

PCM

×

Illuminates if the cruise control system is in control status.

With cruise control system

Cruise set indicator light (green)

19

Door ajar warning light

BCM

×

When any door or the liftgate is open, the door ajar warning light illuminates.

—

20

RVM warning light (amber)

Rear vehicle monitoring control module

×

Illuminates when rear vehicle monitoring system has malfunction.

With rear vehicle monitoring system

RVM indicator light (green)

When the rear vehicle monitoring system is operating, the RVM indicator light illuminates.

21

Oil pressure warning light

Oil pressure switch

—

Illuminates if the oil pressure is low.

—

22

Diesel particulate filter indicator light

PCM

×

Illuminates when a diesel particulate filter-related DTC is stored in the PCM memory.

MZR-CD (RF Turbo), MZR-CD 2.2

23

Gear position indicator light

TCM

×

Gear position indicator light displays the gear position when in the M range.

—

24

MIL

PCM

×

Illuminates if a malfunction occurs in the engine control system and the automatic transaxle control system.

—

25

Brake system warning light

PCM

×

Brake system warning light illumination request.

(See DRIVE-BY-WIRE CONTROL OPERATION [MZR 2.0 DISI].)

(See DRIVE-BY-WIRE CONTROL OPERATION [MZR 1.8, MZR 2.0, MZR 2.5].)

(See FUEL INJECTION AMOUNT CONTROL OPERATION [MZR-CD 2.2].)

—

ABS HU/CM,

DSC HU/CM

×

If the ABS/DSC system is malfunctioning, the brake system warning light remains illuminated.

(See ON-BOARD DIAGNOSTIC SYSTEM FUNCTION [DYNAMIC STABILITY CONTROL (DSC)].)

—

BCM

×

—

26

Front fog light indicator light

Front fog light relay

—

When the front fog light illuminates, the front fog indicator light illuminates.

With front fog light

27

DSC OFF indicator light

DSC HU/CM

×

With DSC

28

TNS indicator light

BCM

—

When the TNS illuminates, the TNS indicator light illuminates.

—

29

AFS OFF light

AFS control module

×

When the AFS OFF switch is pressed to disable, the AFS OFF light illuminates

With AFS

30

Electric power steering (EPS) warning light

EPS control module

×

Illuminates when EPS system has malfunction.

—

31

Fuel-level warning light

Fuel gauge sender unit

—

When the remaining fuel amount in the fuel tank is low, the fuel-level warning light illuminates.

—
