DTC P2455:00 [PCM (SKYACTIV-D 2.2)]
id0102j5153900
DTC P2455:00 |
Exhaust gas pressure sensor No.2: High input |
---|---|
DETECTION CONDITION
|
• With the following conditions met, the exhaust gas pressure sensor No.2 output voltage exceeds 4.89 V for a continuous 3 s.
Diagnostic support note
• This is a continuous monitor (CCM).
• The check engine light illuminates if the PCM detects the above malfunction condition during the first drive cycle.
• FREEZE FRAME DATA/Snapshot data is available.
• DTC is stored in the PCM memory.
|
FAIL-SAFE FUNCTION
|
• Limits engine torque.
• Inhibits the automatic diesel particulate filter regeneration control.
• Inhibits the manual diesel particulate filter regeneration control.
• Inhibits the EGR control.
|
POSSIBLE CAUSE
|
• Exhaust gas pressure sensor No.2 connector or terminal malfunction
• PCM connector or terminal malfunction
• Short to power supply in wiring harness between exhaust gas pressure sensor No.2 terminal C and PCM terminal 1Z
• Short circuit in exhaust gas pressure sensor No.2 power supply circuit and signal circuit
• Open circuit in wiring harness between the following terminals:
• Exhaust gas pressure sensor No.2 malfunction
• PCM malfunction
|
![]() |
Diagnostic Procedure
Step |
Inspection |
Results |
Action |
---|---|---|---|
1
|
RECORD VEHICLE STATUS WHEN DTC WAS DETECTED TO UTILIZE WITH REPEATABILITY VERIFICATION
• Record the freeze frame data/snap shot data.
|
—
|
Go to the next step.
|
2
|
INSPECT EXHAUST GAS PRESSURE SENSOR NO.2 CONNECTOR CONDITION
• Switch the ignition OFF.
• Disconnect the exhaust gas pressure sensor No.2 connector.
• Inspect the connector engagement and connection condition, and inspect the terminals for damage, deformation, corrosion, or disconnection.
• Is the connector normal?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace the connector, then go to Step 8.
|
||
3
|
INSPECT PCM CONNECTOR CONDITION
• Disconnect the PCM connector.
• Inspect the connector engagement and connection condition, and inspect the terminals for damage, deformation, corrosion, or disconnection.
• Is the connector normal?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace the connector, then go to Step 8.
|
||
4
|
INSPECT EXHAUST GAS PRESSURE SENSOR NO.2 SIGNAL CIRCUIT FOR SHORT TO POWER SUPPLY
• Verify that the exhaust gas pressure sensor No.2 connector and the PCM connector are disconnected.
• Switch the ignition ON (engine off).
• Measure the voltage at exhaust gas pressure sensor No.2 terminal C (vehicle wiring harness side).
• Is the voltage 0 V?
|
Yes
|
Go to the next step.
|
No
|

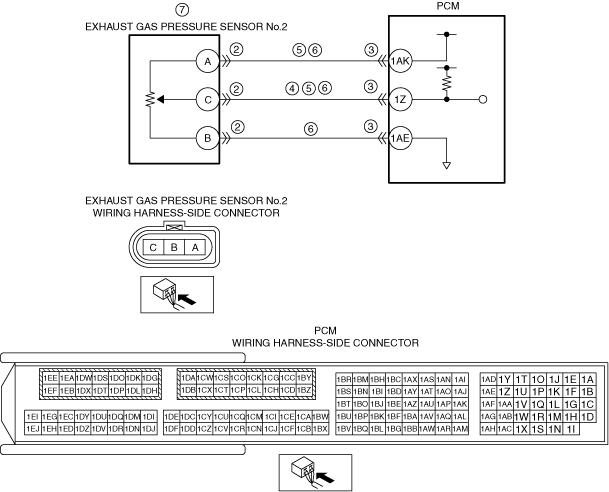

Refer to the wiring diagram and verify if there is a common connector between exhaust gas pressure sensor No.2 terminal C and PCM terminal 1Z.
If there is a common connector:
• Inspect the common connector and terminals for corrosion, damage, or disconnection and the common wiring harnesses for short to power supply to determine the malfunctioning location.
• Repair or replace the malfunctioning location.
If there is no common connector:
• Repair or replace the wiring harness which is shorted to the power supply.
Go to Step 8.
|
||
5
|
INSPECT EXHAUST GAS PRESSURE SENSOR NO.2 POWER SUPPLY CIRCUIT AND SIGNAL CIRCUIT FOR SHORT CIRCUIT
• Verify that the exhaust gas pressure sensor No.2 connector and the PCM connector are disconnected.
• Switch the ignition OFF.
• Inspect for continuity between exhaust gas pressure sensor No.2 terminals A and C (vehicle wiring harness side).
• Is there continuity?
|
Yes
|
Refer to the wiring diagram and verify if there is a common connector between the following terminals.
• Exhaust gas pressure sensor No.2 terminal A and PCM terminal 1AK
• Exhaust gas pressure sensor No.2 terminal C and PCM terminal 1Z
If there is a common connector:
• Inspect the common connector and terminals for corrosion, damage, or disconnection and the common wiring harnesses for short circuit to determine the malfunctioning location.
• Repair or replace the malfunctioning location.
If there is no common connector:
• Repair or replace the malfunctioning wiring harness.
Go to Step 8.
|
No
|
Go to the next step.
|
||
6
|
INSPECT EXHAUST GAS PRESSURE SENSOR NO.2 CIRCUIT FOR OPEN CIRCUIT
• Verify that the exhaust gas pressure sensor No.2 connector and the PCM connector are disconnected.
• Inspect between the following terminals (vehicle wiring harness side) for continuity.
• Is there continuity?
|
Yes
|
Go to the next step.
|
No
|
Refer to the wiring diagram and verify if there is a common connector between the following terminals.
• Exhaust gas pressure sensor No.2 terminal A and PCM terminal 1AK
• Exhaust gas pressure sensor No.2 terminal C and PCM terminal 1Z
• Exhaust gas pressure sensor No.2 terminal B and PCM terminal 1AE
If there is a common connector:
• Inspect the common connector and terminals for corrosion, damage, or disconnection and the common wiring harnesses for an open circuit to determine the malfunctioning location.
• Repair or replace the malfunctioning location.
If there is no common connector:
• Repair or replace the wiring harness which has an open circuit.
Go to Step 8.
|
||
7
|
INSPECT EXHAUST GAS PRESSURE SENSOR NO.2
• Reconnect all the disconnected connectors.
• Inspect exhaust gas pressure sensor No.2.
• Is exhaust gas pressure sensor No.2 normal?
|
Yes
|
Go to the next step.
|
No
|
Replace exhaust gas pressure sensor No.2, then go to the next step.
|
||
8
|
VERIFY THAT REPAIRS HAVE BEEN COMPLETED
• Reconnect all the disconnected connectors.
• Refer to the [MEMORY CLEARING PROCEDURE] and clear the DTC.
• Perform the KOEO or KOER self-test.
• Has DTC P2455:00 been recorded?
|
Yes
|
Repeat the inspection from Step 1.
• If the malfunction recurs, replace the PCM, then go to the next step.
|
No
|
Go to the next step.
|
||
9
|
VERIFY OTHER DTCs
• Has any other DTC or pending code been stored?
|
Yes
|
Repair the malfunctioning location according to the applicable DTC troubleshooting.
|
No
|
DTC troubleshooting completed.
|
