DTC P0118:00 [PCM (SKYACTIV-D 2.2)]

id0102j5701700

DTC P0118:00

ECT sensor circuit high input

DETECTION CONDITION

•  With the following conditions met, the output voltage of the ECT sensor exceeds 4.91 V for a continuous 2 s.

―  Battery voltage: 8—16 V

―  Ignition is switched ON (engine off or on)

Diagnostic support note

•  This is a continuous monitor (CCM).

•  The check engine light illuminates if the PCM detects the above malfunction condition during the first drive cycle.

•  FREEZE FRAME DATA/Snapshot data is available.

•  DTC is stored in the PCM memory.

FAIL-SAFE FUNCTION

•  Inhibits the automatic diesel particulate filter regeneration control.

•  Inhibits the manual diesel particulate filter regeneration control.

•  Inhibits the EGR control.

•  Limits engine torque.

•  Stops the G-vectoring control (GVC).

•  Limits the engine transaxle total control.

•  Inhibits engine-stop by i-stop control.

POSSIBLE CAUSE

•  Ambient temperature is abnormally low

•  ECT sensor connector or terminal malfunction

•  PCM connector or terminal malfunction

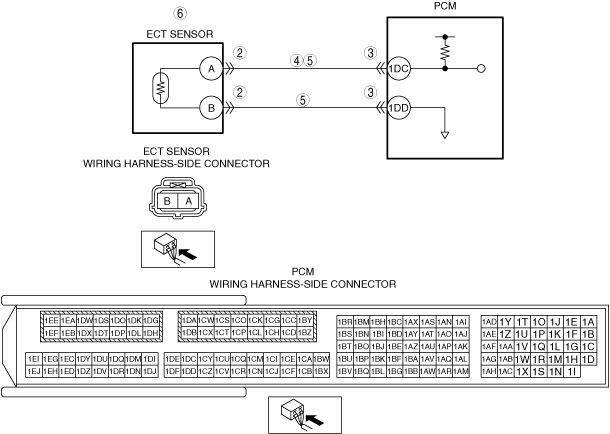

•  Short to power supply in wiring harness between ECT sensor terminal A and PCM terminal 1DC

•  Open circuit in wiring harness between the following terminals:

―  ECT sensor terminal A and PCM terminal 1DC

―  ECT sensor terminal B and PCM terminal 1DD

•  ECT sensor malfunction

•  PCM malfunction

DTC P0118:00	ECT sensor circuit high input
DETECTION CONDITION	• With the following conditions met, the output voltage of the ECT sensor exceeds 4.91 V for a continuous 2 s. ― Battery voltage: 8—16 V ― Ignition is switched ON (engine off or on) Diagnostic support note • This is a continuous monitor (CCM). • The check engine light illuminates if the PCM detects the above malfunction condition during the first drive cycle. • FREEZE FRAME DATA/Snapshot data is available. • DTC is stored in the PCM memory.
FAIL-SAFE FUNCTION	• Inhibits the automatic diesel particulate filter regeneration control. • Inhibits the manual diesel particulate filter regeneration control. • Inhibits the EGR control. • Limits engine torque. • Stops the G-vectoring control (GVC). • Limits the engine transaxle total control. • Inhibits engine-stop by i-stop control.
POSSIBLE CAUSE	• Ambient temperature is abnormally low • ECT sensor connector or terminal malfunction • PCM connector or terminal malfunction • Short to power supply in wiring harness between ECT sensor terminal A and PCM terminal 1DC • Open circuit in wiring harness between the following terminals: ― ECT sensor terminal A and PCM terminal 1DC ― ECT sensor terminal B and PCM terminal 1DD • ECT sensor malfunction • PCM malfunction

Diagnostic Procedure

Step

Inspection

Results

Action

1

RECORD VEHICLE STATUS WHEN DTC WAS DETECTED TO UTILIZE WITH REPEATABILITY VERIFICATION

Note

•  Recording can be facilitated using the screen capture function of the PC.

•  Record the freeze frame data/snap shot data.

—

Go to the next step.

2

INSPECT ECT SENSOR CONNECTOR CONDITION

•  Switch the ignition OFF.

•  Disconnect the ECT sensor connector.

•  Inspect the connector engagement and connection condition, and inspect the terminals for damage, deformation, corrosion, or disconnection.

•  Is the connector normal?

Yes

Go to the next step.

No

Repair or replace the connector, then go to Step 7.

3

INSPECT PCM CONNECTOR CONDITION

•  Disconnect the PCM connector.

•  Inspect the connector engagement and connection condition, and inspect the terminals for damage, deformation, corrosion, or disconnection.

•  Is the connector normal?

Yes

Go to the next step.

No

Repair or replace the connector, then go to Step 7.

4

INSPECT ECT SENSOR SIGNAL CIRCUIT FOR SHORT TO POWER SUPPLY

•  Verify that the ECT sensor connector and the PCM connector are disconnected.

•  Switch the ignition ON (engine off).

Note

•  Another DTC may be stored by the PCM detecting an open circuit.

•  Measure the voltage at ECT sensor terminal A (vehicle wiring harness side).

•  Is the voltage 0 V?

Yes

Go to the next step.

No

Refer to the wiring diagram and verify if there is a common connector between ECT sensor terminal A and PCM terminal 1DC.

If there is a common connector:

•  Inspect the common connector and terminals for corrosion, damage, or disconnection and the common wiring harnesses for short to power supply to determine the malfunctioning location.

•  Repair or replace the malfunctioning location.

If there is no common connector:

•  Repair or replace the wiring harness which is shorted to the power supply.

Go to Step 7.

5

INSPECT ECT SENSOR CIRCUIT FOR OPEN CIRCUIT

•  Verify that the ECT sensor connector and the PCM connector are disconnected.

•  Switch the ignition OFF.

•  Inspect between the following terminals (vehicle wiring harness side) for continuity.

―  ECT sensor terminal A and PCM terminal 1DC

―  ECT sensor terminal B and PCM terminal 1DD

•  Is there continuity?

Yes

Go to the next step.

No

Refer to the wiring diagram and verify if there is a common connector between the following terminals.

•  ECT sensor terminal A and PCM terminal 1DC

•  ECT sensor terminal B and PCM terminal 1DD

If there is a common connector:

―  Inspect the common connector and terminals for corrosion, damage, or disconnection and the common wiring harnesses for an open circuit to determine the malfunctioning location.

―  Repair or replace the malfunctioning location.

If there is no common connector:

―  Repair or replace the wiring harness which has an open circuit.

Go to Step 7.

6

INSPECT ECT SENSOR

•  Reconnect all the disconnected connectors.

•  Inspect the ECT sensor.
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION [SKYACTIV-D 2.2])

•  Is the ECT sensor normal?

Yes

Go to the next step.

No

Replace the ECT sensor, then go to the next step.

(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2])

7

VERIFY THAT REPAIRS HAVE BEEN COMPLETED

•  Reconnect all the disconnected connectors.

•  Refer to the [MEMORY CLEARING PROCEDURE] and clear the DTC.
(See CLEARING DTC [PCM (SKYACTIV-D 2.2)])

•  Perform the KOEO or KOER self-test.
(See KOEO/KOER SELF TEST [PCM (SKYACTIV-D 2.2)])

•  Has DTC P0118:00 been recorded?

Yes

Repeat the inspection from Step 1.

•  If the malfunction recurs, replace the PCM, then go to the next step.
(See PCM REMOVAL/INSTALLATION [SKYACTIV-D 2.2])

No

Go to the next step.

8

VERIFY OTHER DTCs

•  Has any other DTC or pending code been stored?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

(See DTC TABLE [PCM (SKYACTIV-D 2.2)])

No

DTC troubleshooting completed.
