DTC P0130:00 [PCM (SKYACTIV-D 2.2)]

id0102j5702100

DTC P0130:00

A/F sensor control circuit problem

DETECTION CONDITION

•  With the following conditions met, the A/F sensor voltage is less than 0.106 V for a continuous 5 s.

―  A/F sensor terminal D voltage: 3.678 V or more, or 4.353 V or less

―  Battery positive voltage: 11—16 V

―  Ignition is switched ON (engine on)

Diagnostic support note

•  This is an intermittent monitor (A/F sensor).

•  The check engine light illuminates if the PCM detects the above malfunction condition during the first drive cycle.

•  FREEZE FRAME DATA/Snapshot data is available.

•  DTC is stored in the PCM memory.

FAIL-SAFE FUNCTION

•  Limits engine torque.

•  Inhibits the automatic diesel particulate filter regeneration control.

•  Inhibits the manual diesel particulate filter regeneration control.

•  Inhibits the EGR control.

POSSIBLE CAUSE

•  A/F sensor connector or terminal malfunction

•  Short circuit in each wiring harness of A/F sensor

•  PCM connector or terminal malfunction

•  A/F sensor malfunction

•  PCM malfunction

DTC P0130:00	A/F sensor control circuit problem
DETECTION CONDITION	• With the following conditions met, the A/F sensor voltage is less than 0.106 V for a continuous 5 s. ― A/F sensor terminal D voltage: 3.678 V or more, or 4.353 V or less ― Battery positive voltage: 11—16 V ― Ignition is switched ON (engine on) Diagnostic support note • This is an intermittent monitor (A/F sensor). • The check engine light illuminates if the PCM detects the above malfunction condition during the first drive cycle. • FREEZE FRAME DATA/Snapshot data is available. • DTC is stored in the PCM memory.
FAIL-SAFE FUNCTION	• Limits engine torque. • Inhibits the automatic diesel particulate filter regeneration control. • Inhibits the manual diesel particulate filter regeneration control. • Inhibits the EGR control.
POSSIBLE CAUSE	• A/F sensor connector or terminal malfunction • Short circuit in each wiring harness of A/F sensor • PCM connector or terminal malfunction • A/F sensor malfunction • PCM malfunction

Diagnostic Procedure

Step

Inspection

Results

Action

1

RECORD VEHICLE STATUS WHEN DTC WAS DETECTED TO UTILIZE WITH REPEATABILITY VERIFICATION

Note

•  Recording can be facilitated using the screen capture function of the PC.

•  Record the freeze frame data/snap shot data.

—

Go to the next step.

2

VERIFY OTHER RELATED DTCs

•  Switch the ignition OFF, and then switch it ON (engine off).

•  Display the DTCs using the M-MDS.
(See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-D 2.2)])

•  Has any DTC other than P0130:00 been stored?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

(See DTC TABLE [PCM (SKYACTIV-D 2.2)])

No

Go to the next step.

3

INSPECT A/F SENSOR CONNECTOR CONNECTION

•  Switch the ignition OFF.

•  Disconnect the A/F sensor connector.

•  Inspect the connector engagement and connection condition, and inspect the terminals for damage, deformation, corrosion, or disconnection.

•  Is the connector normal?

Yes

Go to the next step.

No

Repair or replace the connector, then go to Step 7.

4

INSPECT PCM CONNECTOR CONDITION

•  Disconnect the PCM connector.

•  Inspect the connector engagement and connection condition, and inspect the terminals for damage, deformation, corrosion, or disconnection.

•  Is the connector normal?

Yes

Go to the next step.

No

Repair or replace the connector, then go to Step 7.

5

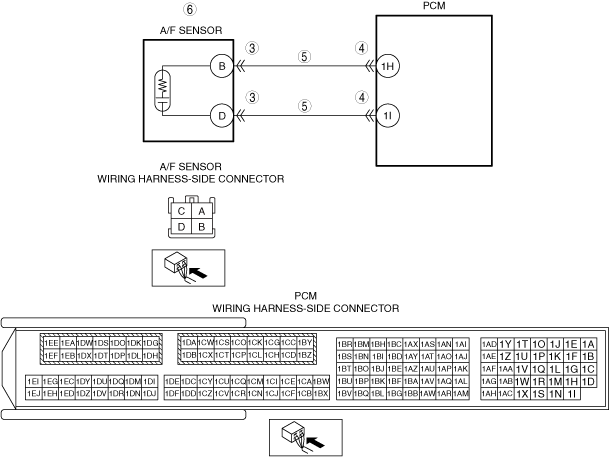

INSPECT A/F SENSOR CIRCUIT FOR SHORT TO EACH WIRING HARNESS

•  Verify that the A/F sensor connector and the PCM connector are disconnected.

•  Switch the ignition OFF.

•  Inspect for continuity between A/F sensor terminals B and D (vehicle wiring harness side).

•  Is there continuity?

Yes

Refer to the wiring diagram and verify if there is a common connector between the following terminals.

•  A/F sensor terminal B and PCM terminal 1H

•  A/F sensor terminal D and PCM terminal 1I

If there is a common connector:

―  Inspect the common connector and terminals for corrosion, damage, or disconnection and the common wiring harnesses for short circuit to determine the malfunctioning location.

―  Repair or replace the malfunctioning location.

If there is no common connector:

―  Repair or replace the malfunctioning wiring harness.

•  Repair or replace the malfunctioning wiring harness.

Go to Step 7.

No

Go to the next step.

6

INSPECT A/F SENSOR

•  Reconnect all the disconnected connectors.

•  Inspect the A/F sensor.
(See AIR FUEL RATIO (A/F) SENSOR INSPECTION [SKYACTIV-D 2.2])

•  Is the A/F sensor normal?

Yes

Go to the next step.

No

Replace the A/F sensor, then go to the next step.

(See AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2])

7

VERIFY THAT REPAIRS HAVE BEEN COMPLETED

•  Reconnect all disconnected connectors and hoses.

•  Refer to the [MEMORY CLEARING PROCEDURE] and clear the DTC.
(See CLEARING DTC [PCM (SKYACTIV-D 2.2)])

•  Perform the KOEO or KOER self-test.
(See KOEO/KOER SELF TEST [PCM (SKYACTIV-D 2.2)])

•  Has DTC P0130:00 been recorded?

Yes

Repeat the inspection from Step 1.

•  If the malfunction recurs, replace the PCM, then go to the next step.
(See PCM REMOVAL/INSTALLATION [SKYACTIV-D 2.2])

No

Go to the next step.

8

VERIFY OTHER DTCs

•  Has any other DTC or pending code been stored?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

(See DTC TABLE [PCM (SKYACTIV-D 2.2)])

No

Go to the next step.
