DTC P0196:00 [PCM (SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION))]
id0102t1211900
Details On DTCs
|
DESCRIPTION |
Engine oil temperature sensor circuit range/performance problem |
|
|---|---|---|
|
DETECTION CONDITION
|
Determination conditions
|
• During the 10 min after the engine is started, the engine oil temperature does not increase above 0.9 °C {2 °F}.
|
|
Preconditions
|
• Before starting the engine, leave the vehicle with the engine turned off for 6 hours or more.
• The following DTCs are not detected:
|
|
|
Drive cycle
|
• 2
|
|
|
Self test type
|
• CMDTC self test
|
|
|
Sensor used
|
• Engine oil temperature sensor
|
|
|
FAIL-SAFE FUNCTION
|
• Not applicable
|
|
|
VEHICLE STATUS WHEN DTCs ARE OUTPUT
|
• The check engine light may be illuminated depending on the condition.
|
|
|
POSSIBLE CAUSE
|
• Low engine oil level
• Engine oil temperature sensor/engine oil pressure sensor connector or terminals malfunction
• PCM connector or terminals malfunction
• Engine oil temperature sensor loose
• Engine oil temperature sensor malfunction
• Use of unspecified engine oil
• PCM malfunction
|
|
System Wiring Diagram

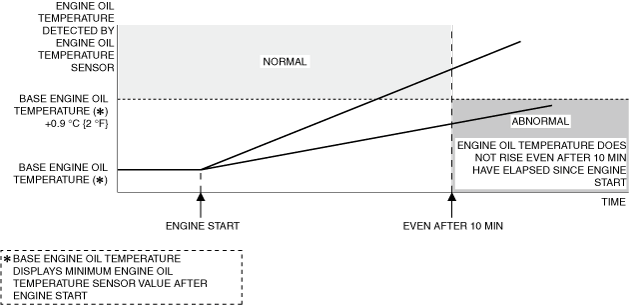

Function Explanation (DTC Detection Outline)
am6zzw00016361
|
Repeatability Verification Procedure
PID Item/Simulation Item Used In Diagnosis
PID/DATA monitor item table
|
Item |
Definition |
Unit |
Condition/Specification |
|---|---|---|---|
|
EOT2
|
Engine oil temperature
|
°C, °F
|
• Displays the engine oil temperature
|
Function Inspection Using M-MDS
|
STEP |
INSPECTION |
RESULTS |
ACTION |
|---|---|---|---|
|
1
|
PURPOSE: RECORD VEHICLE STATUS AT TIME OF DTC DETECTION TO UTILIZE WITH REPEATABILITY VERIFICATION
• Record the FREEZE FRAME DATA/snapshot data on the repair order.
|
—
|
Go to the next step.
|
|
2
|
PURPOSE: VERIFY RELATED SERVICE INFORMATION AVAILABILITY
• Verify related Service Information availability.
• Is any related Service Information available?
|
Yes
|
Perform repair or diagnosis according to the available Service Information.
• If the vehicle is not repaired, go to the next step.
|
|
No
|
Go to the next step.
|
||
|
3
|
PURPOSE: VERIFY ENGINE OIL TEMPERATURE SENSOR INPUT SIGNAL
• Start the engine and idle it.
• Access the EOT2 PID using the M-MDS.
• Is the PID value within specification?
|
Yes
|
Go to the next step.
|
|
No
|
Go to Troubleshooting Diagnostic Procedure to perform the procedure from Step 2.
|
||
|
4
|
PURPOSE: VERIFY CONNECTOR CONNECTIONS
• Start the engine.
• Access the EOT2 PID using the M-MDS.
• Does the PID value fluctuate when the following connectors are shaken?
|
Yes
|
Repair or replace the applicable wiring harness or connector parts.
Go to Troubleshooting Diagnostic Procedure to perform the procedure from Step 7.
|
|
No
|
Go to Troubleshooting Diagnostic Procedure to perform the procedure from Step 1.
|
Troubleshooting Diagnostic Procedure
|
STEP |
INSPECTION |
RESULTS |
ACTION |
|---|---|---|---|
|
1
|
PURPOSE: INSPECT ENGINE OIL LEVEL
• Inspect the engine oil level.
• Is the engine oil level sufficient?
|
Yes
|
Go to the next step.
|
|
No
|
Add genuine motor oil.
Perform the “ENGINE OIL DATA RESET”, then go to Step 7.
|
||
|
2
|
PURPOSE: INSPECT ENGINE OIL TEMPERATURE SENSOR/ENGINE OIL PRESSURE SENSOR CONNECTOR CONDITION
• Switch the ignition off.
• Disconnect the engine oil temperature sensor/engine oil pressure sensor connector.
• Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
• Is there any malfunction?
|
Yes
|
Repair or replace the connector and/or terminals, then go to Step 7.
|
|
No
|
Go to the next step.
|
||
|
3
|
PURPOSE: INSPECT PCM CONNECTOR CONDITION
• Disconnect the PCM connector.
• Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
• Is there any malfunction?
|
Yes
|
Repair or replace the connector and/or terminals, then go to Step 7.
|
|
No
|
Go to the next step.
|
||
|
4
|
PURPOSE: INSPECT INSTALLATION OF ENGINE OIL TEMPERATURE SENSOR/ENGINE OIL PRESSURE SENSOR
• Inspect installation of engine oil temperature sensor/engine oil pressure sensor.
• Is the engine oil temperature sensor/engine oil pressure sensor installed securely?
|
Yes
|
Go to the next step.
|
|
No
|
Retighten the engine oil temperature sensor/engine oil pressure sensor, then go to Step 7.
|
||
|
5
|
PURPOSE: INSPECT ENGINE OIL TEMPERATURE SENSOR
• Inspect the engine oil temperature sensor.
• Is there any malfunction?
|
Yes
|
Replace the engine oil temperature sensor/engine oil pressure sensor, then go to Step 7.
|
|
No
|
Go to the next step.
|
||
|
6
|
PURPOSE: INSPECT IF INSUFFICIENT HYDRAULIC PRESSURE CAUSED BY USE OF UNSPECIFIED ENGINE OIL
• Is the specified engine oil being used?
|
Yes
|
Go to the next step.
|
|
No
|
Replace the engine oil with genuine motor oil, then go to the next step.
|
||
|
7
|
PURPOSE: VERIFICATION OF VEHICLE REPAIR COMPLETION
• Always reconnect all disconnected connectors.
• Clear the DTC from the PCM memory using the M-MDS.
• Implement the repeatability verification procedure.
• Perform the Pending Trouble Code Access Procedure.
• Is the same Pending DTC present?
|
Yes
|
Repeat the inspection from Step 1.
• If the malfunction recurs, replace the PCM.
Go to the next step.
|
|
No
|
Go to the next step.
|
||
|
8
|
PURPOSE: VERIFY IF THERE IS ANY OTHER MALFUNCTION
• Is any other DTC or pending code stored?
|
Yes
|
Go to the applicable DTC inspection.
|
|
No
|
DTC troubleshooting completed.
|
