ENGINE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T]

id0110q8800400

Warning

•  A hot engine can cause severe burns. Turn off the engine and wait until it is cool before servicing.

•  Fuel vapor is hazardous. It can very easily ignite, causing serious injury and damage. Always keep sparks and flames away from fuel.

•  Highly pressurized fuel may spray out if the fuel line is cut.

Due to the following dangers occurring with a fuel spray, always complete the “Fuel Line Safety Procedure” to prevent the fuel from spraying.

―  Fuel may cause irritation if it comes in contact with skin and eyes.

―  If fuel ignites and causes a fire, it may lead to serious injury or death, and damage to property and facilities.

Caution

•  Secure the steering wheel using tape or a cable to prevent the steering shaft from rotating after disconnecting the steering shaft. If the steering wheel rotates after the steering shaft and the steering gear and linkage are disconnected, the internal parts of the clock spring could be damaged.

•  Applying excessive force (force of 100 N {10.2 kgf, 22.5 lbf} or more) to the electric variable valve timing motor/driver may cause a malfunction. When servicing, be careful not to apply excessive force to the electric variable valve timing motor/driver using other parts or tools.

Note

•  Perform the engine and transaxle component removal/installation from below the vehicle.

Engine Removal

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front under cover No.1 and No.2. (See FRONT UNDER COVER No.1 REMOVAL/INSTALLATION.) (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

3.  Remove the front splash shield. (See SPLASH SHIELD REMOVAL/INSTALLATION.)

4.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G 2.5T].)

5.  Drain the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [GW6A-EL, GW6AX-EL].)

6.  Remove the front wheels and tires. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

7.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

8.  Remove the air cleaner, air hose and fresh air duct as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

9.  Remove the bolt, nut, clip and connector shown in the figure, and set the wiring harness aside.

am6xuw00010546

10.  Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

11.  Remove the air inlet pipe. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

12.  Remove the turbocharger air outlet pipe and charge air cooler inlet hose. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

13.  Disconnect the selector cable. (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

14.  Disconnect the vacuum hose. (See VACUUM HOSE REMOVAL/INSTALLATION [L.H.D. (SKYACTIV-G 2.5T)].)(See VACUUM HOSE REMOVAL/INSTALLATION [R.H.D. (SKYACTIV-G 2.5T)].)

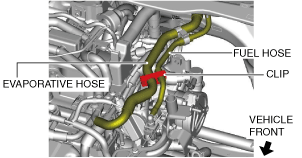

15.  Disconnect the clip shown in the figure.

ac9uuw00006343

16.  Disconnect the evaporative hose. (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

17.  Disconnect the fuel hose. (See QUICK RELEASE CONNECTOR (FUEL SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

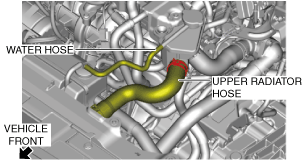

18.  Disconnect the upper radiator hose and water hose from the engine side.

am6xuw00010547

19.  Remove the lower radiator hose using the following procedure:

(1)  Disconnect the lower radiator hose shown in the figure.

ac9uuw00006345

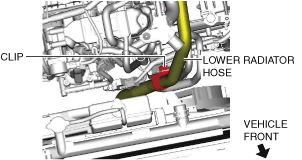

(2)  Remove the clip shown in the figure.

ac9uuw00007431

(3)  Remove the lower radiator hose.

ac9uuw00006348

20.  Disconnect the oil hoses from the radiator. (if equipped) (See OIL COOLER REMOVAL/INSTALLATION [GW6A-EL (SKYACTIV-G 2.5T)].)

21.  Remove the generator drive belt. (See DRIVE BELT REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

22.  Remove the TWC installation nuts (WU-TWC side) and secure the TWC using wire or rope so that it is out of the way. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

23.  Disconnect the front drive shafts from the transaxle side and set it aside. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

24.  Remove the front crossmember component and No.1 engine mount rubber as a single unit. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION.)

25.  Remove the charge air cooler outlet pipe and charge air cooler outlet hose as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

26.  Disconnect the heater hoses.

ac9uuw00006349

27.  Remove the A/C compressor with the cooler hose still connected and secure it using wire or rope so that it is out of the way. (See A/C COMPRESSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

28.  Remove in the order indicated in the table.

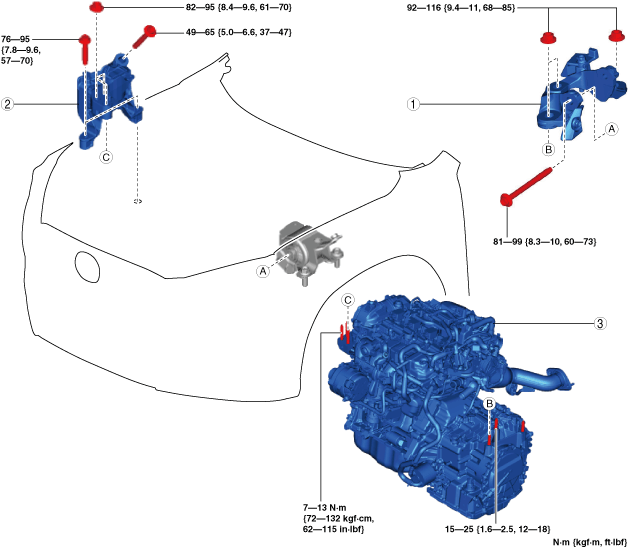

am6xuw00010548

1	No.4 engine mount bracket (See No.3 engine mount, No.4 engine mount bracket removal note.)
2	No.3 engine mount (See No.3 engine mount, No.4 engine mount bracket removal note.)
3	Engine, transaxle

No.3 engine mount, No.4 engine mount bracket removal note

Warning

•  When removing/installing the engine, verify that the engine and transaxle are securely supported. Otherwise, the engine may fall off and cause serious injury or death, and damage to the vehicle.

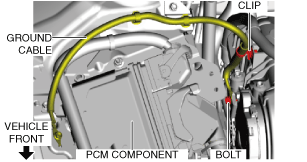

1.  Disconnect the ground cable shown in the figure.

LH

am6xuw00010549

RH

am6xuw00010550

2.  Set the PCM wiring harness and PCM component aside using the following procedure:

(1)  Disconnect the PCM connector (140 pin side) from the PCM. (See PCM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

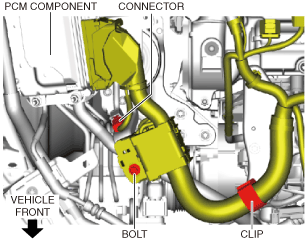

(2)  Remove the bolt, clip and connector shown in the figure and set aside the PCM wiring harness to the engine upper side.

am6xuw00010551

(3)  Remove the bolts shown in the figure.

am6xuw00010552

(4)  Move the PCM component in the direction of the arrow shown in the figure and set it aside with the connector (60-pin side) connected.

am6xuw00010553

3.  Set the wiring harness bracket aside using the following procedure:

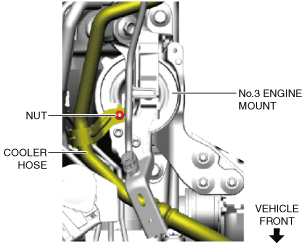

(1)  Remove the nut shown in the figure and set the cooler hose aside.

am6xuw00010554

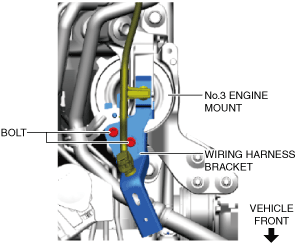

(2)  Remove the bolts shown in the figure and set the wiring harness bracket aside.

am6xuw00010555

Caution

•  When supporting the engine and transaxle, insert rubber of appropriate size (approx. 20 mm {0.79 in} thickness) between the engine lifter and the oil pan, transaxle to prevent the deformation of the oil pan and damage of the transaxle.

4.  Secure the engine and transaxle using a commercially available engine lifter.

am3uuw00008802

5.  Remove the No.4 engine mount bracket.

6.  Remove the No.3 engine mount.

Engine Installation

Warning

•  When removing/installing the engine, verify that the engine and transaxle are securely supported. Otherwise, the engine may fall off and cause serious injury or death, and damage to the vehicle.

Caution

•  Slots have been adopted for the No.3 engine mount and No.4 engine mount bracket installation holes. Tighten the installation bolts and nuts so that they are centered on the slots. Otherwise, engine noise or vibration could increase.

Note

•  Retighten the engine front cover and transaxle stud bolts when the nuts of No.3 engine mount and No.4 engine mount bracket are loosened.

1.  Tighten the engine front cover stud bolts.

ac9uuw00006364

2.  Tighten the transaxle stud bolts.

am6xuw00012324

Caution

•  When supporting the engine and transaxle, insert rubber of appropriate size (approx. 20 mm {0.79 in} thickness) between the engine lifter and the oil pan, transaxle to prevent the deformation of the oil pan and damage of the transaxle.

3.  Secure the engine and transaxle using a commercially available engine lifter.

am3uuw00008802

4.  Return the engine and transaxle to their original positions.

5.  Temporarily tighten the No.3 engine mount installation bolts and nuts using the following procedure:

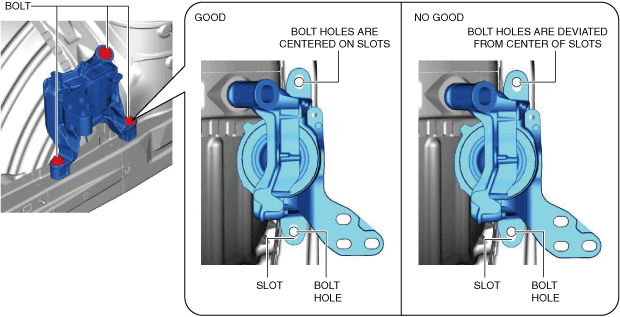

(1)  Temporarily tighten the bolts shown in the figure so that they are centered on the No.3 engine mount slots.

am6xuw00010556

(2)  Temporarily tighten the nuts shown in the figure so that the stud bolts of the engine front cover are centered on the No.3 engine mount slots.

•  If the stud bolts are deviated from the center of the slots, align the stud bolts with the center of the slots while slightly moving the engine, and temporarily tighten the installation nuts.

am6xuw00010557

6.  Temporarily tighten the No.4 engine mount bracket installation bolt and nuts using the following procedure:

(1)  Temporarily tighten the bolt shown in the figure.

ac9uuw00006367

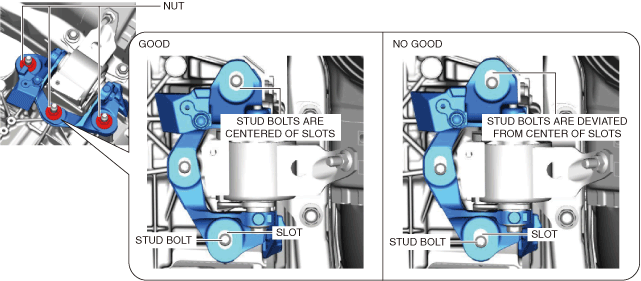

(2)  Temporarily tighten the nuts shown in the figure so that they are centered on the No.4 engine mount bracket slots.

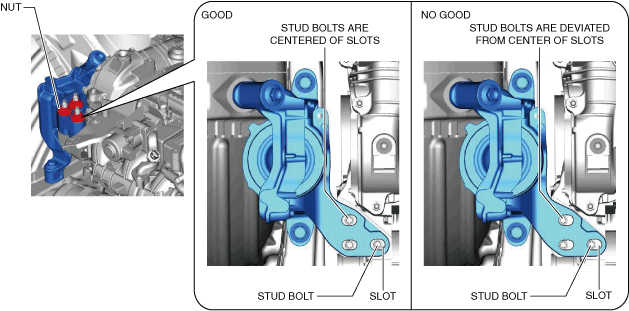

•  If the stud bolts are deviated from the center of the slots, align the stud bolts with the center of the slots while slightly moving the transaxle, and temporarily tighten the installation nuts.

am6xuw00010558

7.  Install the A/C compressor. (See A/C COMPRESSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

8.  Connect the heater hoses.

ac9uuw00006349

9.  Install the charge air cooler outlet pipe and charge air cooler outlet hose as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

10.  Install the No.1 engine mount rubber and the front crossmember component as a single unit. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION.)

Note

•  At this stage, only temporarily tighten the No.1 engine mount rubber, do not tighten it completely.

11.  Tighten the No.3 engine mount installation bolts and nuts in the order shown in the figure.

ac9uuw00006372

12.  Tighten the No.4 engine mount bracket installation bolt and nuts in the order shown in the figure.

ac9uuw00006373

13.  Tighten the No.1 engine mount rubber installation bolts.

ac5wzw00009325

14.  Install the front drive shafts. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

15.  Install the TWC. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

16.  Install the generator drive belt. (See DRIVE BELT REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

17.  Connect the oil hoses to the radiator. (if equipped) (See OIL COOLER REMOVAL/INSTALLATION [GW6A-EL (SKYACTIV-G 2.5T)].)

18.  Connect the lower radiator hose using the following procedure:

(1)  Connect the lower radiator hose to the radiator.

ac9uuw00006348

(2)  Install the clip shown in the figure.

ac9uuw00007431

(3)  Connect the lower radiator hose to the engine side.

ac9uuw00006345

19.  Install the front wheels and tires. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

20.  Install the wiring harness bracket using the following procedure:

(1)  Tighten the bolts shown in the figure.

am6xuw00010555

Tightening torque

8—10 N·m {82—101 kgf·cm, 71—88 in·lbf}

(2)  Tighten the nut shown in the figure.

am6xuw00010554

Tightening torque

8—10 N·m {82—101 kgf·cm, 71—88 in·lbf}

21.  Install the PCM component using the following procedure:

(1)  Return the PCM component that was set aside to its original position.

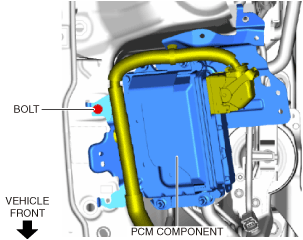

(2)  Temporarily tighten the bolt shown in the figure.

am6xuw00010559

(3)  Tighten the PCM component installation bolts in the order shown in the figure.

am6xuw00010560

Tightening torque

9—10 N·m {92—101 kgf·cm, 80—88 in·lbf}

(4)  Install the wiring harness protector and connector.

am6xuw00010551

Tightening torque

9—12 N·m {92—122 kgf·cm, 80—106 in·lbf}

(5)  Connect the PCM connector (140-pin side) to the PCM. (See PCM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

22.  Connect the ground cable shown in the figure.

LH

am6xuw00010549

RH

am6xuw00010550

23.  Connect the upper radiator hose and water hose.

am6xuw00010547

24.  Connect the fuel hose. (See QUICK RELEASE CONNECTOR (FUEL SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

25.  Connect the evaporative hose. (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

26.  Install the clip shown in the figure.

ac9uuw00006343

27.  Connect the vacuum hose. (See VACUUM HOSE REMOVAL/INSTALLATION [L.H.D. (SKYACTIV-G 2.5T)].)(See VACUUM HOSE REMOVAL/INSTALLATION [R.H.D. (SKYACTIV-G 2.5T)].)

28.  Connect the selector cable. (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

29.  Install the turbocharger air outlet pipe and charge air cooler inlet hose. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

30.  Install the air inlet pipe. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

31.  Install the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

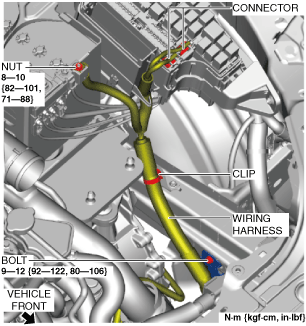

32.  Connect the wiring harness shown in the figure.

am6xuw00010561

33.  Install the air cleaner, air hose and fresh air duct as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

34.  Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

35.  Refill the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [GW6A-EL, GW6AX-EL].)

36.  Refill the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G 2.5T].)

37.  Start the engine, and inspect and adjust the following:

•  Front wheel alignment (See FRONT WHEEL ALIGNMENT.)

•  Leakage of engine oil, engine coolant, ATF, and fuel.

•  Runout and contact of pulley and belt.

•  Ignition timing, idle speed and idle mixture. (See ENGINE TUNE-UP [SKYACTIV-G 2.5T].)

•  Engine-driven accessories operation.

Note

•  If the engine is overhauled and assembled to the vehicle, perform a road test to verify that there is no abnormal vibration and noise.

38.  Install the front splash shield. (See SPLASH SHIELD REMOVAL/INSTALLATION.)

39.  Install the front under cover No.1 and No.2. (See FRONT UNDER COVER No.1 REMOVAL/INSTALLATION.) (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

40.  Install the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
