REAR OIL SEAL REPLACEMENT [SKYACTIV-G 2.5T]

id0110q8800900

1.  Remove the transaxle. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [GW6A-EL (SKYACTIV-G 2.5T)].)

2.  Remove the drive plate. (See DRIVE PLATE REMOVAL/INSTALLATION [GW6A-EL, GW6AX-EL].)

3.  Remove in the order indicated in the table.

4.  Install in the reverse order of removal.

ac9uuw00008411

1	Rear oil seal (See Rear Oil Seal Removal Note.) (See Rear Oil Seal Installation Note.)

Rear Oil Seal Removal Note

1.  Cut the rear oil seal lip using a utility knife.

2.  Remove the rear oil seal using a flathead screwdriver with the tip protected by a clean cloth to prevent damage to the crankshaft.

ac9uuw00008412

Rear Oil Seal Installation Note

1.  Apply clean engine oil to the inner surface of a new rear oil seal.

2.  Insert the rear oil seal into the cylinder block by hand.

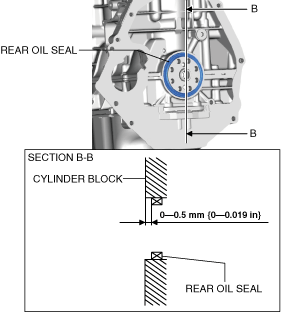

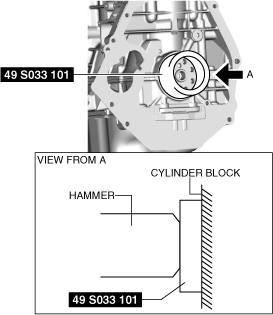

3.  Tap the rear oil seal in evenly using the SST and a hammer.
