MECHANICAL [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)]

id0110s7000100


Outline

•  The following parts have been adopted to achieve cylinder deactivation control for SKYACTIV-G 2.5 (with cylinder deactivation).
―  Switchable HLA adopted
―  OCV for cylinder deactivation adopted

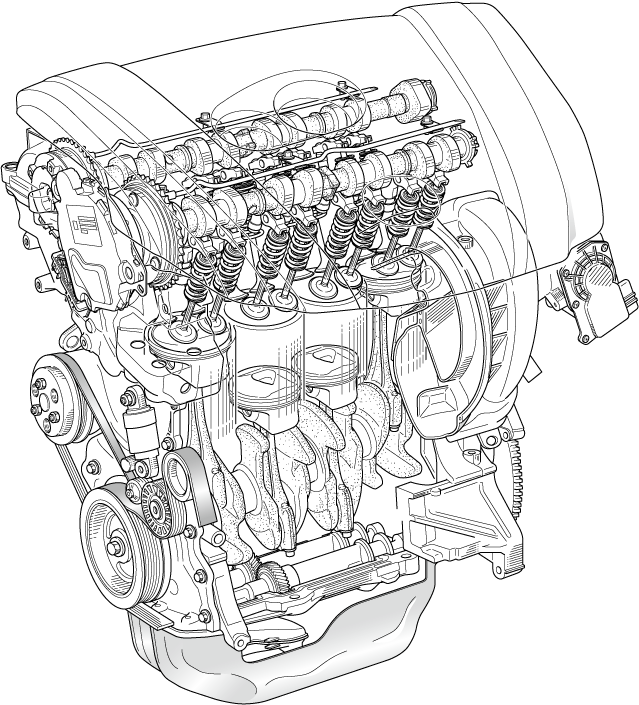

Structural View

ac5wzn00004829

Structure

•  Consists of the following parts:

Cylinder head cover
(See CYLINDER HEAD COVER [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
Cylinder head
(See CYLINDER HEAD [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
Cylinder head gasket
(See CYLINDER HEAD GASKET [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
Cylinder block
(See CYLINDER BLOCK [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
Crankshaft
(See CRANKSHAFT, MAIN BEARING [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
Piston
(See PISTON, PISTON RING, PISTON PIN [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
Connecting rod
(See CONNECTING ROD, CONNECTING ROD BEARING [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
Engine front cover
(See ENGINE FRONT COVER [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
Crankshaft pulley
(See CRANKSHAFT PULLEY [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
Drive belt
(See DRIVE BELT [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
Valve mechanism
(See VALVE MECHANISM [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
Valve
(See VALVE, VALVE SPRING, VALVE SEAL, VALVE GUIDE [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
HLA
(See HYDRAULIC LASH ADJUSTER, ROCKER ARM [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
(See SWITCHABLE HYDRAULIC LASH ADJUSTER (SWITCHABLE HLA), ROCKER ARM [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
Camshaft
(See CAMSHAFT [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
Timing chain
(See TIMING CHAIN, CHAIN TENSIONER [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
Variable valve timing mechanism
(See VARIABLE VALVE TIMING MECHANISM [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
OCV
(See OCV FOR HYDRAULIC VARIABLE VALVE TIMING SYSTEM [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
(See OIL CONTROL VALVE (OCV) FOR CYLINDER DEACTIVATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
Hydraulic variable valve timing actuator
(See HYDRAULIC VARIABLE VALVE TIMING ACTUATOR [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
Electric variable valve timing actuator
(See ELECTRIC VARIABLE VALVE TIMING ACTUATOR [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
Electric variable valve timing relay
(See ELECTRIC VARIABLE VALVE TIMING RELAY [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
Balancer unit
(See BALANCER UNIT [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
Engine mount
(See ENGINE MOUNT [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
