LUBRICATION SYSTEM [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)]

id0111q9002100


Outline

•  Hydraulic passages for cylinder deactivation have been added to the cylinder head.

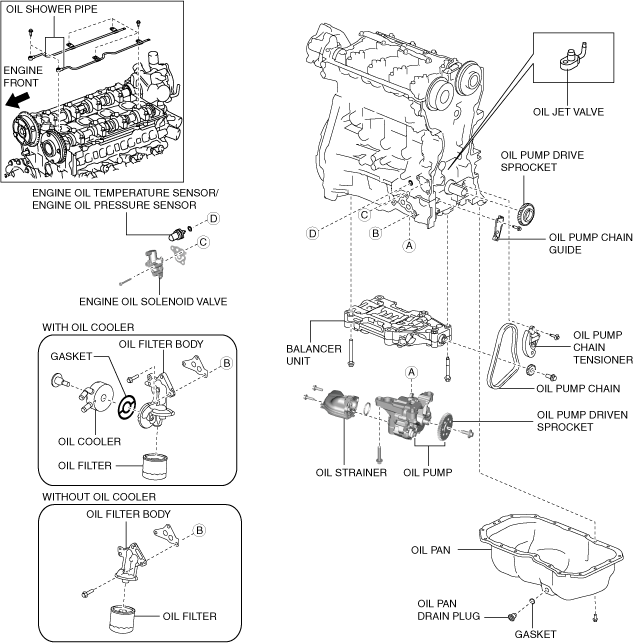

Structural View

am6zzn00005265

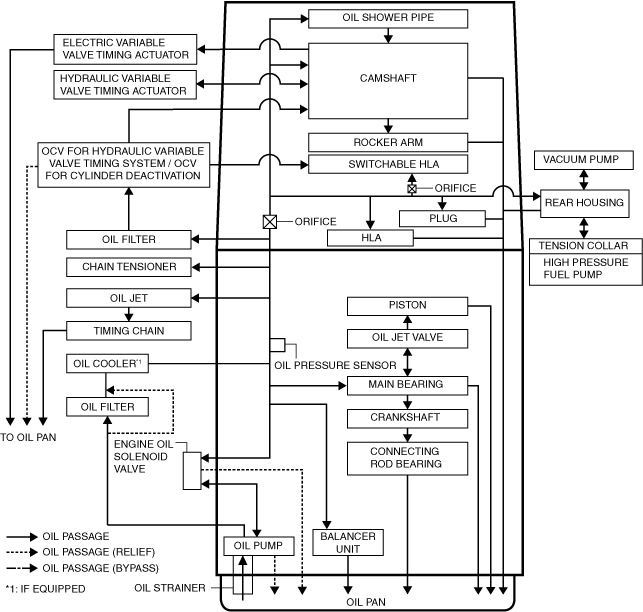

Flow View

am6zzn00005657

Structure

•  Consists of the following parts:

Oil filter
(See OIL FILTER [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
Oil cooler
(See OIL COOLER [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
Oil pan
(See OIL PAN [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
Oil strainer
(See OIL STRAINER [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
Oil pump
(See OIL PUMP [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
Oil jet valve
(See OIL JET VALVE [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
Engine oil solenoid valve
(See ENGINE OIL SOLENOID VALVE [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
Oil shower pipe
(See OIL SHOWER PIPE [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
