INTAKE-AIR SYSTEM [SKYACTIV-D 2.2]

id0113z7003300


Purpose, Outline

•  A vacuum pump has been adopted which supplies stable vacuum to the power brake unit.
•  With the adoption of the two-stage air charging system, efficient, high air-charging is obtained in all driving ranges. As a result, low emissions, low fuel consumption, high torque, and high response are realized.

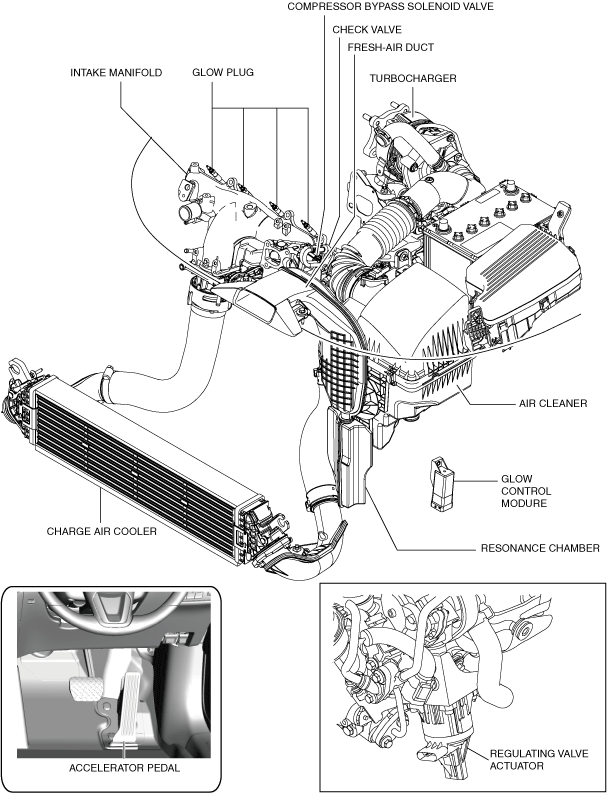

Structural View

ac8wzn00000132

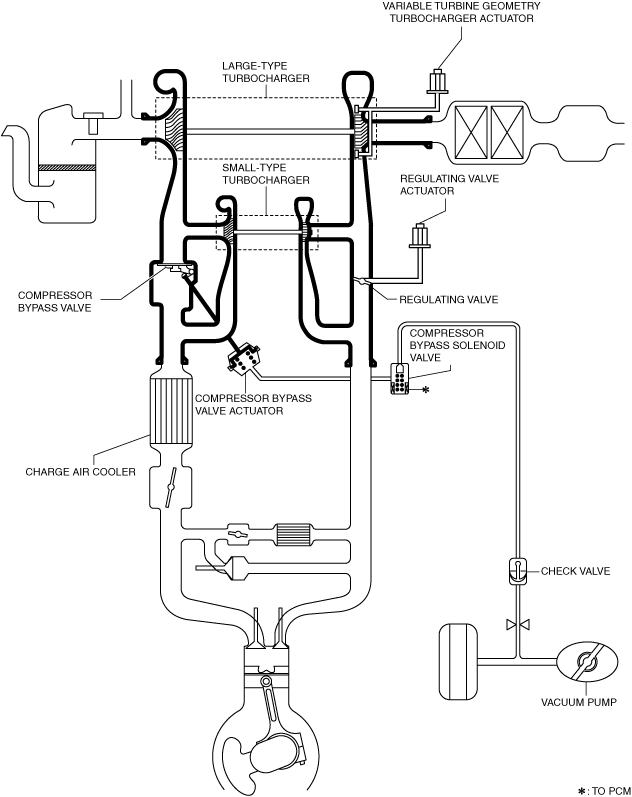

System Diagram

ac5wzn00005049

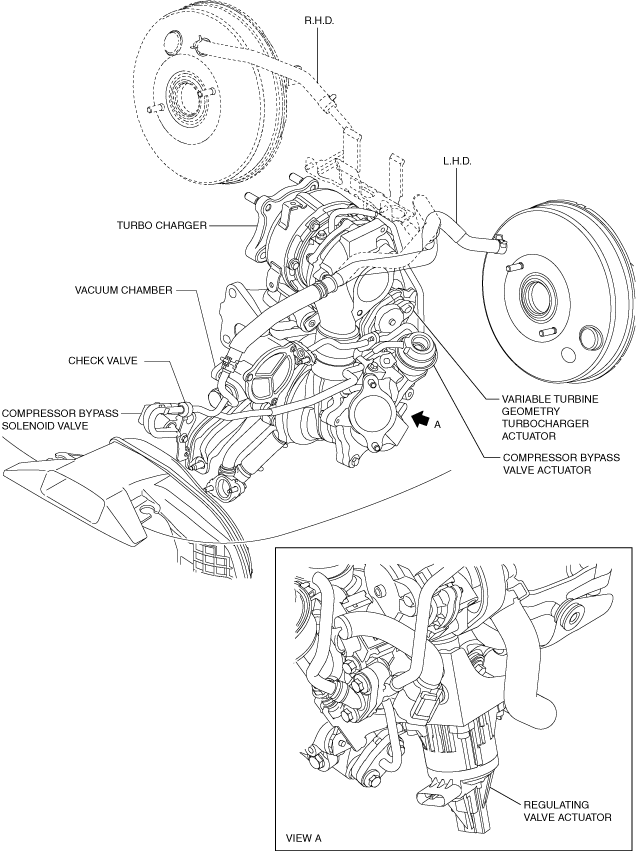

Vacuum Hose Routing Diagram

ac5wzw00012066

Structure

•  The intake air system consists of the following parts:

Part/System name

Reference
Fresh-air duct
(See FRESH-AIR DUCT [SKYACTIV-D 2.2].)
Resonance chamber
(See RESONANCE CHAMBER [SKYACTIV-D 2.2].)
Air cleaner
(See AIR CLEANER [SKYACTIV-D 2.2].)
Intake manifold
(See INTAKE MANIFOLD [SKYACTIV-D 2.2].)
Air charging system
(See AIR CHARGING SYSTEM [SKYACTIV-D 2.2].)
Turbocharger
Compressor bypass valve actuator
(See TURBOCHARGER [SKYACTIV-D 2.2].)
Compressor bypass valve
Variable turbine geometry turbocharger actuator (fuel injector
Regulating valve actuator
Regulating valve
Compressor bypass solenoid valve
(See COMPRESSOR BYPASS SOLENOID VALVE [SKYACTIV-D 2.2].)
Check valve
(See CHECK VALVE [SKYACTIV-D 2.2].)
Charge air cooler
(See CHARGE AIR COOLER [SKYACTIV-D 2.2].)
Glow system
(See GLOW SYSTEM [SKYACTIV-D 2.2].)
Glow plug
(See GLOW PLUG [SKYACTIV-D 2.2].)
Glow control module
(See GLOW CONTROL MODULE [SKYACTIV-D 2.2].)
Accelerator pedal
(See ACCELERATOR PEDAL, KICKDOWN SWITCH [SKYACTIV-D 2.2].)
