FUEL TANK [SKYACTIV-G 2.5T]

id0114q4104100


Purpose, Function

•  The fuel tank stores fuel safely.

Construction

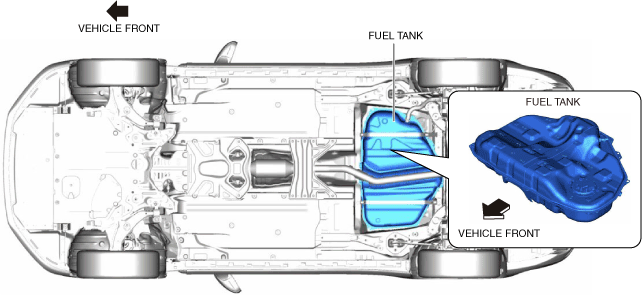

•  The fuel tank is located at the rear of the vehicle.
•
am6xun00004077
•  The fuel tank is made of steel.
•  The following parts are integrated in the fuel tank.
acmzzw00000145
―  Non-return valve
(See NON-RETURN VALVE [SKYACTIV-G 2.5T].)
―  Rollover valve
(See ROLLOVER VALVE [SKYACTIV-G 2.5T].)
