FUEL PUMP CONTROL MODULE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T]

id0114q4175000

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Using the following procedure:

4SD

1.  Tip the rear seat back (LH). (See REAR SEAT BACK REMOVAL/INSTALLATION.)

WGN

1.  Set the rear seat back (LH). (See REAR SEAT BACK REMOVAL/INSTALLATION.)

3.  Remove in the order indicated in the table.

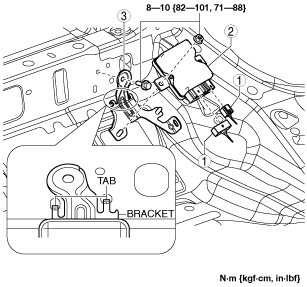

am6xuw00005244

1	Fuel pump control module connector
2	Fuel pump control module
3	Fuel pump control module bracket

4.  Install in the reverse order of removal.
