REAR SEAT BACK REMOVAL/INSTALLATION

id091300912400

Caution

•  When performing the procedure with a rear seat back removed from the vehicle, perform the procedure on a clean cloth so as not to damage or soil the seat.

Note

•  When removing the rear seat back from the vehicle or putting it back in, it can be performed easier by removing the headrest. (See Headrest Removal Note.)

4SD

1.  Disconnect the negative battery terminal. (With USB power outlet/with rear seat warmer system) (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the head restraint.

3.  Fold the rear seat back.

4.  Disconnect the connector. (With USB power outlet/with rear seat warmer system)

am6zzw00018491

5.  Remove the surface fastener. (With USB power outlet/with rear seat warmer system)

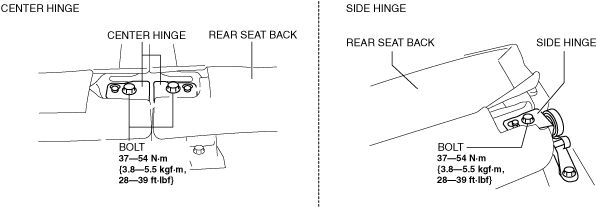

6.  Remove the bolts.

am6zzw00011320

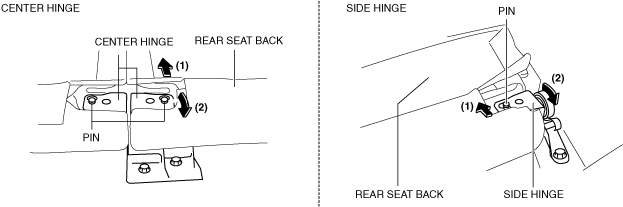

7.  After moving the rear seat in the direction of the arrow (1) shown in the figure, remove the pins while moving the side hinge/center hinge in the direction of the arrow (2).

am6zzw00011321

8.  Remove the rear seat back.

9.  Install in the reverse order of removal.

WGN

1.  Disconnect the negative battery terminal. (With USB power outlet/with rear seat warmer system) (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the head restraint.

3.  When removing the rear seat back (LH), remove the following parts.

(1)  Rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(2)  Rear center seat belt lower anchor installation bolt. (See REAR CENTER SEAT BELT REMOVAL/INSTALLATION.)

4.  Fold the rear seat back.

5.  Disconnect the connectors. (With USB power outlet/with rear seat warmer system)

am6zzw00018491

6.  Remove the surface fastener. (With USB power outlet/with rear seat warmer system)

7.  Remove the trunk covering. (See TRUNK COVERING REMOVAL/INSTALLATION.)

8.  Remove the trunk board. (See TRUNK BOARD REMOVAL/INSTALLATION.)

9.  Press the tab in the direction of the arrow (1) shown in the figure to disengage it, and open the upper part of the case in the direction of the arrow (2).

ac5wzw00005621

10.  Disconnect the remote cable.

am6zzw00009772

11.  Remove the bolt.

am6zzw00011320

12.  After moving the rear seat in the direction of the arrow (3) shown in the figure, remove the pins while moving the side hinge/center hinge in the direction of the arrow (4).

am6zzw00011322

13.  Remove the rear seat back.

14.  Install in the reverse order of removal.

15.  Pull the remote handle levers and verify that the rear seat backs are unlocked.

•  If any of the rear seat backs does not unlock, or it is hard to unlock or lock, adjust the remote cable. (See REMOTE HANDLE LEVER REMOVAL/INSTALLATION.)

Headrest Removal Note

Pole guide with cap

1.  Remove the cap using the remover tool.

am6zzw00018181

2.  Pull up the headrest while pressing the button.

am6zzw00018182

3.  Pull up the headrest while pressing the button and remove the headrest.

am6zzw00018183
