FUEL TANK REMOVAL/INSTALLATION [SKYACTIV-G 2.5T]

id0114q4801600

Warning

•  Highly pressurized fuel may spray out if the fuel line is cut. Due to the following dangers occurring with a fuel spray, always complete the “Fuel Line Safety Procedure” to prevent the fuel from spraying.

―  Fuel may cause irritation if it comes in contact with skin and eyes.

―  If fuel ignites and causes a fire, it may lead to serious injury or death, and damage to property and facilities.

•  A person charged with static electricity could cause a fire or explosion, resulting in death or serious injury. Before draining fuel, make sure to discharge static electricity by touching the vehicle body.

Caution

•  Disconnecting/connecting the quick release connector without cleaning it may cause damage to the fuel pipe and quick release connector. Always clean the quick release connector joint area before disconnecting/connecting using a cloth or soft brush, and make sure that it is free of foreign material.

1.  Level the vehicle.

2.  Complete the “BEFORE SERVICE PRECAUTION”. (See BEFORE SERVICE PRECAUTION [SKYACTIV-G 2.5T].)

3.  Drain the fuel. (See FUEL DRAINING PROCEDURE [SKYACTIV-G 2.5T].)

4.  Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

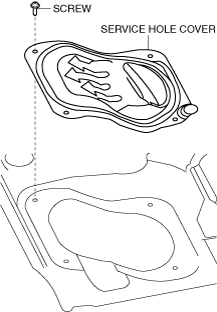

5.  Remove the service hole cover.

am6xuw00005251

6.  Disconnect the following parts:

•  Fuel pump unit connector

•  Quick release connector (See QUICK RELEASE CONNECTOR (FUEL SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

7.  Remove the floor under cover. (See FLOOR UNDER COVER REMOVAL/INSTALLATION.)

8.  Disconnect the HO2S connector.

9.  Remove the TWC and HO2S as a single unit. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

10.  Remove in the order indicated in the table.

11.  Install in the reverse order of removal.

12.  Complete the “AFTER SERVICE PRECAUTION”. (See AFTER SERVICE PRECAUTION [SKYACTIV-G 2.5T].)

am6zzw00018099

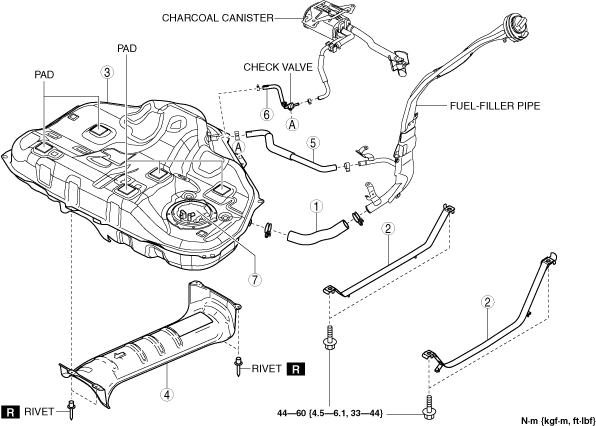

1	Joint hose (See Joint Hose Installation Note.)
2	Fuel tank strap
3	Fuel tank (See Fuel Tank Removal Note.)
4	Fuel tank insulator (See Fuel Tank Insulator Removal Note.)
5	Breather hose (See Breather Hose Installation Note.)
6	Evaporative hose (See Evaporative Hose Installation Note.)
7	Fuel pump unit (See FUEL PUMP UNIT REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

Fuel Tank Removal Note

1.  Disconnect the breather hose from the fuel-filler pipe side.

2.  Disconnect the evaporative hose (between charcoal canister and check valve) from the check valve side.

3.  Remove the following parts as single unit:

•  Breather hose

•  Evaporative hose

•  Fuel pump unit

•  Fuel tank insulator

•  Fuel tank

4.  Remove the fuel tank.

Fuel Tank Insulator Removal Note

Note

•  The fuel tank insulator are installed using rivets.

1.  Push out the mandrel using a hammer and punch (2—2.8 mm {0.08—0.11 in} diameter).

am6xuw00006508

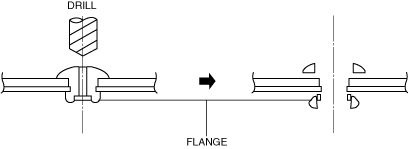

2.  Remove the flange using a drill (5 mm {0.20 in} drill bit).

am6xuw00006509

Evaporative Hose Installation Note

1.  Install the evaporative hose as shown in the figure.

am6xuw00005254

Breather Hose Installation Note

1.  Install the breather hose as shown in the figure.

Fuel tank side

am6xuw00005255

Fuel-filler pipe side

am6xuw00005256

Joint Hose Installation Note

1.  Install the joint hose as shown in the figure.

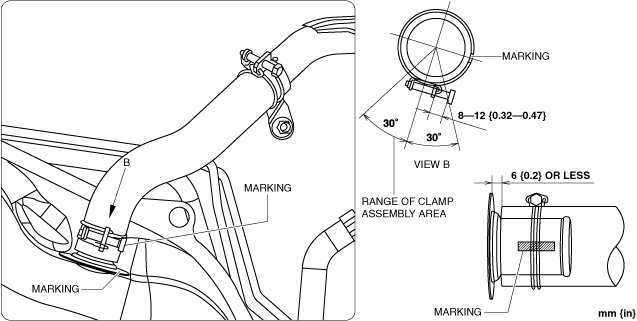

Fuel tank side

am6xuw00005257

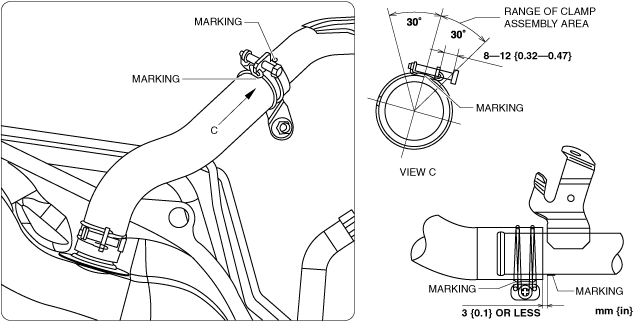

Fuel-filler pipe side

am6xuw00006510
