FUEL SYSTEM [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)]

id0114q8002600


Outline

•  A multiple hole type fuel injector has been adopted which provides higher fuel injection accuracy for improved fuel efficiency and output.
•  Piston movement-compression by the 4-head cam inside the high pressure fuel pump heightens the fuel pressure, achieving improved fuel efficiency and output.

Structural View

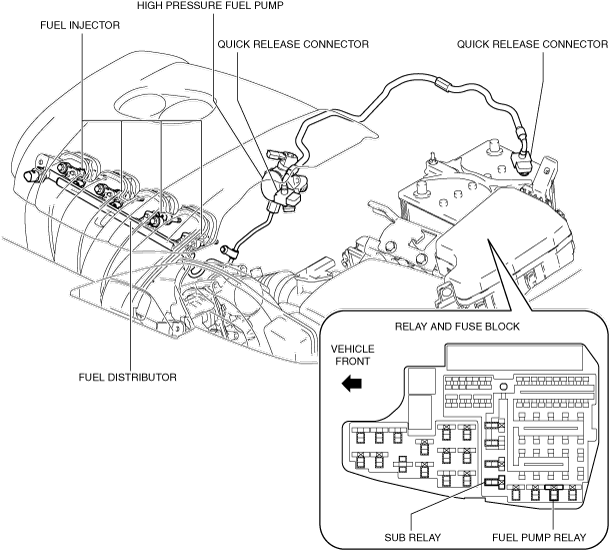

Engine compartment side

am6xun00004663


Fuel tank side

am6xun00004664


System Diagram

am6xun00004665

Structure

•  The fuel system consists of the following parts:

Part/System name

Reference
Return-less fuel system
(See RETURNLESS FUEL SYSTEM [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)].)
Fuel pump unit
(See FUEL PUMP UNIT [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)].)
Direct fuel injection system
(See DIRECT FUEL INJECTION SYSTEM [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)].)
High pressure fuel pump
(See HIGH PRESSURE FUEL PUMP [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)].)
Fuel distributor
(See FUEL DISTRIBUTOR [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)].)
Fuel injector
(See FUEL INJECTOR [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)].)
Fuel tank
(See FUEL TANK [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)].)
Non-return valve
(See NON-RETURN VALVE [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)].)
Fuel pump relay
(See FUEL PUMP RELAY [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)].)
Sub relay
(See SUB RELAY [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)].)
Fuel pump control module
(See FUEL PUMP CONTROL MODULE [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)].)
Quick connector (fuel system)
(See QUICK RELEASE (FUEL SYSTEM) CONNECTOR [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)].)


Specification

Item

Specification
Fuel injector
Type
High resistance
Fuel supply method
Top-feed
Drive types
Electronic
Pressure regulator control pressure
(kPa {kgf/cm2, psi})
Approx. 430 {4.38, 62.4}
Fuel pump type
Electric
Fuel tank capacity
(L {US gal, Imp gal})
62.2 {16.4, 13.7}


Fuel type

Fuel

Research Octane Number

Country
Premium unleaded fuel (Conforming to EN 228 and within E10)*1
95 or above
New Caledonia, Turkey, Azerbaijan, Armenia, Georgia, Kazakhstan, Canary Islands, Reunion, Morocco, Austria, Greece, Italy, Switzerland, Belgium, Denmark, Finland, Norway, Portugal, Spain, Sweden, Hungary, Germany, Poland, Bulgaria, Croatia, Slovenia, Luxembourg, Slovakia, Latvia, Lithuania, Russia, Belarus, France, Ukraine, Czech, Estonia, Faeroe, Iceland, Romania, The Netherlands, Macedonia, Bosnia and Herzegovina, Serbia, Montenegro, Albania, Moldova, Martinique, F.Guiana, Guadeloupe, Cyprus, Malta, Ireland, UK, Taiwan, Tahiti, Vanuatu, Iran, UAE, Lebanon, Israel, Algeria, Libya, Tunisia, Madagascar, Guatemala, Bolivia, Uruguay, Honduras, Nicaragua, Aruba, St. Martin, Singapore, Hong Kong, Malaysia, Brunei, Macau, Mauritius, South Africa, Jamaica, Barbados, Grenada, ST. Lucia, ST. Vincent, Antigua, Suriname, Mongolia, Seychelles, Namibia, Botswana, Swaziland, Lesoto
Regular unleaded fuel (Conforming to Fuel Quality Standards Act 2000)*2
92 or above
Egypt, Myanmar
90 or above
The Philippines, Marshall Islands, Ustt*3, Kuwait, Oman, Qatar, Saudi Arabia, Syria, Bahrain, Jordan, Nigeria, Angola, Chile, El Salvador, Costa Rica, Ecuador, Haiti, Colombia, Dominican Republic (LHD), Panama, Peru, B.Virgin, Curacao, Indonesia, Nepal, Sri Lanka, Fiji, Papua New Guinea, Kenya, Zimbabwe, Trinidad and Tobago, Commonwealth of Dominica, Cambodia, Iraq, Ivory Coast, Australia, New zeland, Laos, Cameroon, Burundi, Gabon, Ghana, Tanzania, Mozambique

*1  :Europe
*2  :Australia
*3  :Republic of Palau & Federated States of Micronesia
