EXHAUST SYSTEM [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)]

id0115q5125800

Outline

• An exhaust shutter valve has been adopted to suppress booming noise during cylinder deactivation.

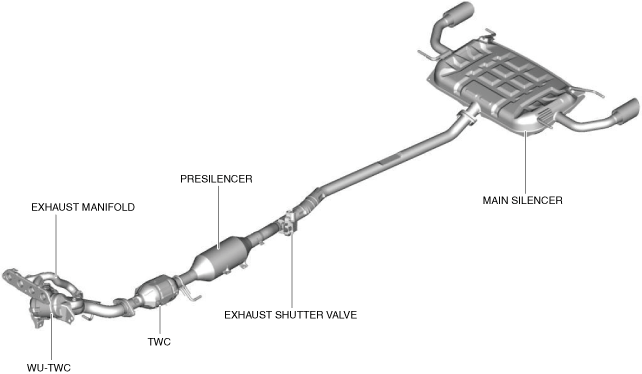

Structural View

am6xun00004111

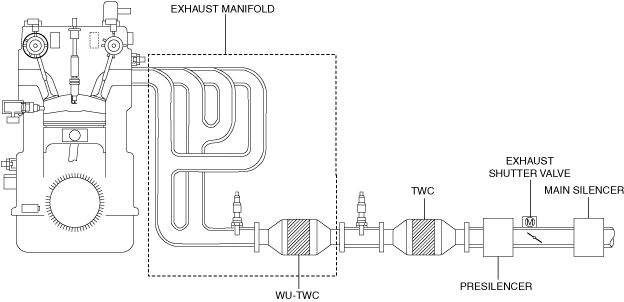

System Diagram

am6xun00004670

Structure

• The exhaust system consists of the following parts:

Part name	Reference
Main silencer	(See MAIN SILENCER [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
Presilencer	(See PRESILENCER [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
TWC	(See CATALYTIC CONVERTER [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
WU-TWC
Exhaust manifold	(See EXHAUST MANIFOLD [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
Exhaust shutter valve	(See EXHAUST SHUTTER VALVE [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
