UREA INJECTOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2]

id0116e1809100

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

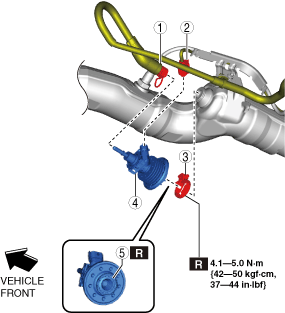

3. Remove in the order shown in the table.

am6xuw00012667

4. Install in the reverse order of removal.

5. If the urea injector is replaced, perform the “Operation After Replacing Urea Injector” procedure. (See SCR SYSTEM INSPECTION [SKYACTIV-D 2.2].)

Gasket Installation Note

1. Install the gasket so that the tabs do not bend.

am6xuw00012278

Urea injector Installation Note

1. Align the injector tabs with the flange grooves and assemble.

am6xuw00012668

1	Quick release connector (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
2	Urea injector connector
3	Clamp
4	Urea injector (See Urea injector Installation Note.)
5	Gasket (See Gasket Installation Note.)
