EMISSION SYSTEM [SKYACTIV-G 2.5T]

id0116q4110100

Outline

• Purifies contaminants (CO, HC, NOx) in the exhaust gas, blow-by gas, and evaporative gas exhausted from the vehicle.

Structural

Structural view

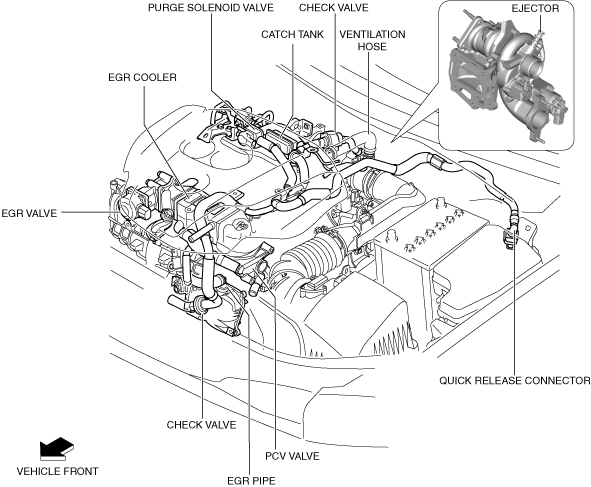

Engine compartment side

am6xun00004673

Exhaust system side

am6xun00004184

Fuel tank side

acmzzw00000148

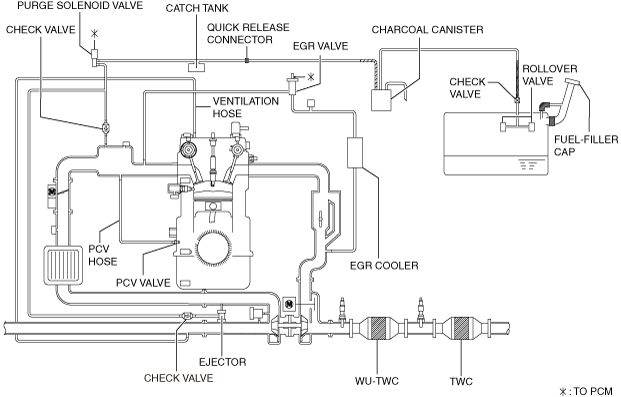

System diagram

am6xun00004186

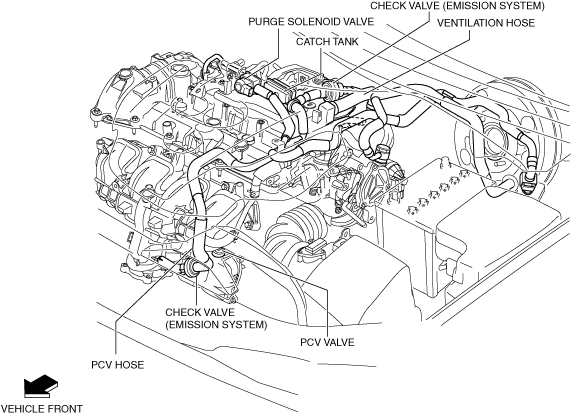

Vacuum hose routing diagram

L.H.D.

am6zzn00005697

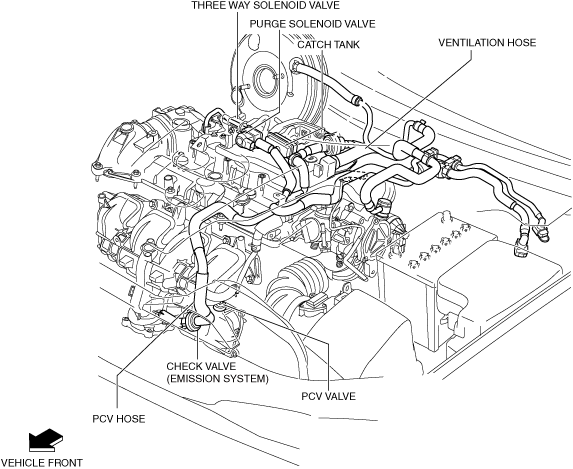

R.H.D.

am6zzn00005698

• The emission system consists of the following parts:

Part/System name		Reference
Exhaust gas purification system (See EXHAUST GAS PURIFICATION SYSTEM [SKYACTIV-G 2.5T].)	Catalytic converter	(See CATALYTIC CONVERTER [SKYACTIV-G 2.5T].)
Exhaust gas recirculation system (See EXHAUST GAS RECIRCULATION SYSTEM [SKYACTIV-G 2.5T].)	EGR cooler	(See EGR COOLER [SKYACTIV-G 2.5T].)
	EGR valve	(See EGR VALVE [SKYACTIV-G 2.5T].)
	Exhaust gas pressure sensor	(See EXHAUST GAS PRESSURE SENSOR [SKYACTIV-G 2.5T].)
Positive crankcase ventilation system (See POSITIVE CRANKCASE VENTILATION (PCV) SYSTEM [SKYACTIV-G 2.5T].)	PCV valve	(See POSITIVE CRANKCASE VENTILATION (PCV) VALVE [SKYACTIV-G 2.5T].)
Evaporative emission control system (See EVAPORATIVE EMISSION (EVAP) CONTROL SYSTEM [SKYACTIV-G 2.5T].)	Ejector	(See EJECTOR [SKYACTIV-G 2.5T].)
	Purge solenoid valve	(See PURGE SOLENOID VALVE [SKYACTIV-G 2.5T].)
	Catch tank	(See CATCH TANK [SKYACTIV-G 2.5T].)
	Charcoal canister	(See CHARCOAL CANISTER [SKYACTIV-G 2.5T].)
	Fuel-filler cap	(See FUEL-FILLER CAP [SKYACTIV-G 2.5T].)
	Rollover valve	(See ROLLOVER VALVE [SKYACTIV-G 2.5T].)
	Evaporative chamber	(See EVAPORATIVE CHAMBER [SKYACTIV-G 2.5T].)
	Check valve (emission system)	(See CHECK VALVE (EMISSION SYSTEM) [SKYACTIV-G 2.5T].)
Quick release connector (emission system)		(See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) [SKYACTIV-G 2.5T].)
