EXHAUST GAS PURIFICATION SYSTEM [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)]

id0116q5113400


Purpose, Outline

•  Purifies contaminants (HC, CO, NOx) in the exhaust gas by utilizing the chemical reactions of the three-way catalytic converter.

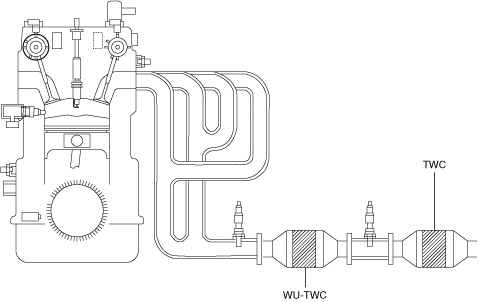

System Diagram

ac5uun00003885

Structure

•  The exhaust gas purification system consists of the following parts:

Part name

Reference
WU-TWC
(See CATALYTIC CONVERTER [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
TWC
