EMISSION SYSTEM LOCATION INDEX [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)]

id0116q7803700

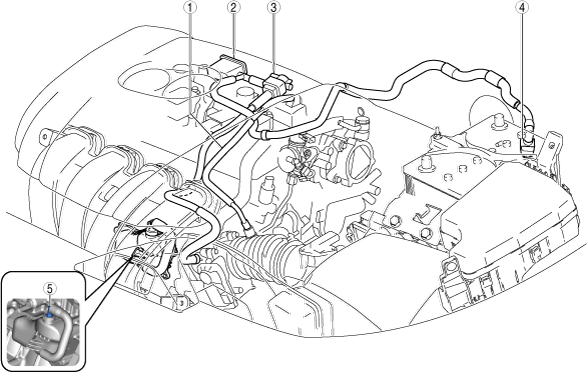

Engine Compartment Side

am6xuw00011930

1
Ventilation hose
(See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
2
Catch tank
(See PURGE SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
(See CATCH TANK INSPECTION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
3
Purge solenoid valve
(See PURGE SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
(See PURGE SOLENOID VALVE INSPECTION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
4
Quick release connector
(See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
5
PCV valve
(See POSITIVE CRANKCASE VENTILATION (PCV) VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
(See POSITIVE CRANKCASE VENTILATION (PCV) VALVE INSPECTION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)

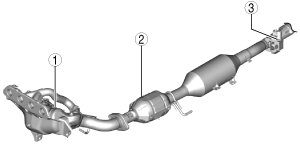

Exhaust System Side

am6xuw00011931

1
WU-TWC
(See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
2
TWC
(See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
3
Exhaust shutter valve
(See EXHAUST SHUTTER VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
(See EXHAUST SHUTTER VALVE INSPECTION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)


Fuel Tank Side

acmzzw00000134

1
Rollover valve
(See ROLLOVER VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
(See ROLLOVER VALVE INSPECTION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
2
Check valve
(See CHECK VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
(See CHECK VALVE INSPECTION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
3
Charcoal canister
(See CHARCOAL CANISTER REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
(See CHARCOAL CANISTER INSPECTION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
4
Evaporative chamber
(See EVAPORATIVE CHAMBER REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
(See EVAPORATIVE CHAMBER INSPECTION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
5
Fuel-filler cap
(See FUEL-FILLER PIPE REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
