CHARGING SYSTEM [WITHOUT i-ELOOP (SKYACTIV-D 2.2)]

id0117h61029j4

Note
•  For location index of the generator, DC-DC converter (i-ELOOP), capacitor on vehicles with i-ELOOP, refer to the i-ELOOP section. (See i-ELOOP [i-ELOOP].)

Outline

•  Regulator-less generator (built-in power transistor) has been adopted.
•  A generator using two delta connection type stator coils has been adopted.

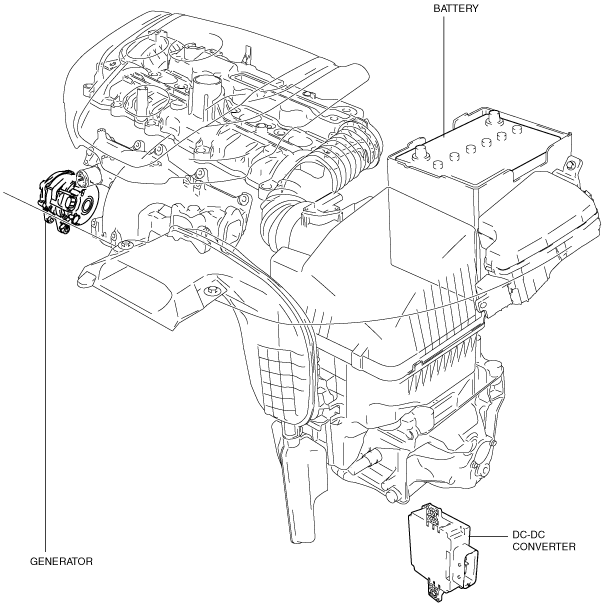

Structural View

am6zzn00002460

Structure

•  Consists of the following parts:

Battery
(See BATTERY [SKYACTIV-D 2.2].)
Generator (without i-ELOOP)
(See GENERATOR [WITHOUT i-ELOOP (SKYACTIV-D 2.2)].)
DC-DC converter (without i-ELOOP)
(See DC-DC CONVERTER [WITHOUT i-ELOOP (SKYACTIV-D 2.2)].)
Charging system warning light/warning indication
(See CHARGING SYSTEM WARNING INDICATION/CHARGING SYSTEM WARNING LIGHT [SKYACTIV-D 2.2].)
