IGNITION SYSTEM [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)]

id0118q7108200

Outline

• A direct ignition coil for independent ignition control has been adopted.

• An ignition coil built-into the ion sensor has been adopted.

• An iridium spark plug has been adopted.

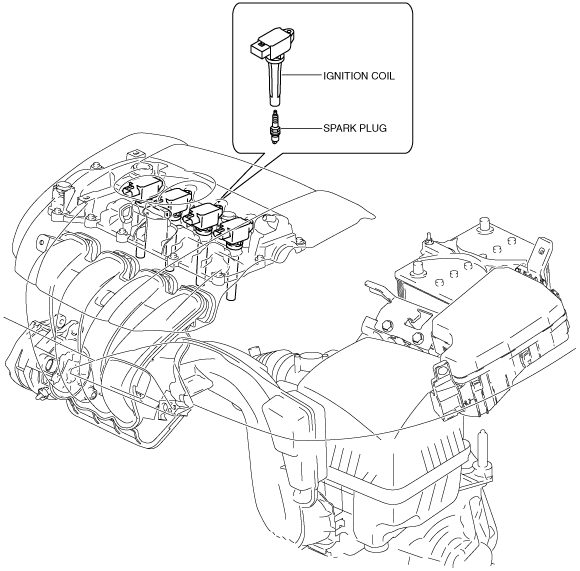

Structural View

ac5wzn00001030

Structure

• Consists of the following parts:

Spark plug	(See SPARK PLUG [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
Ignition coil	(See IGNITION COIL [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
