CONTROL SYSTEM LOCATION INDEX [SKYACTIV-G 2.5T]

id0140h0804100

am6xuw00010862

1	PCM (BARO sensor, PCM temperature sensor) (See PCM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See PCM INSPECTION [SKYACTIV-G 2.5T].) (See PCM CONFIGURATION (USING READ/WRITE FUNCTION) [SKYACTIV-G 2.5T].) (See PCM CONFIGURATION (USING AS-BUILT DATA) [SKYACTIV-G 2.5T].) (See BAROMETRIC PRESSURE (BARO) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See BAROMETRIC PRESSURE (BARO) SENSOR INSPECTION [SKYACTIV-G 2.5T].)
2	High fuel pressure sensor (See HIGH FUEL PRESSURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See HIGH FUEL PRESSURE SENSOR INSPECTION [SKYACTIV-G 2.5T].)
3	Exhaust gas pressure sensor (See EXHAUST GAS PRESSURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See EXHAUST GAS PRESSURE SENSOR INSPECTION [SKYACTIV-G 2.5T].)
4	Ion sensor (See ION SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See ION SENSOR INSPECTION [SKYACTIV-G 2.5T].)
5	Low fuel pressure sensor/Fuel temperature sensor (See LOW FUEL PRESSURE SENSOR/FUEL TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See LOW FUEL PRESSURE SENSOR INSPECTION [SKYACTIV-G 2.5T].) (See FUEL TEMPERATURE SENSOR INSPECTION [SKYACTIV-G 2.5T].)
6	Intake CMP sensor (See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See CAMSHAFT POSITION (CMP) SENSOR INSPECTION [SKYACTIV-G 2.5T].)
7	Exhaust CMP sensor (See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See CAMSHAFT POSITION (CMP) SENSOR INSPECTION [SKYACTIV-G 2.5T].)
8	ECT sensor (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION [SKYACTIV-G 2.5T].)
9	MAF sensor/IAT sensor No.1 (See MASS AIR FLOW (MAF) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO.1 REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See MASS AIR FLOW (MAF) SENSOR INSPECTION [SKYACTIV-G 2.5T].) (See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION [SKYACTIV-G 2.5T].)
10	KS (See KNOCK SENSOR (KS) REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See KNOCK SENSOR (KS) INSPECTION [SKYACTIV-G 2.5T].)
11	TP sensor (See THROTTLE POSITION (TP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See THROTTLE POSITION (TP) SENSOR INSPECTION [SKYACTIV-G 2.5T].)
12	MAP sensor/IAT sensor No.2 (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO.2 REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR INSPECTION [SKYACTIV-G 2.5T].) (See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION [SKYACTIV-G 2.5T].)
13	Boost pressure sensor/Boost air temperature sensor (See BOOST PRESSURE SENSOR/BOOST AIR TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See BOOST PRESSURE SENSOR INSPECTION [SKYACTIV-G 2.5T].) (See BOOST AIR TEMPERATURE SENSOR INSPECTION [SKYACTIV-G 2.5T].)

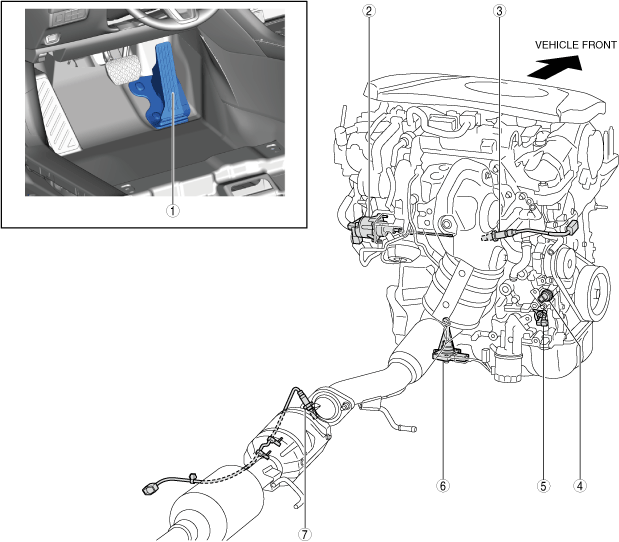

am6zzw00017675

1	APP sensor (See ACCELERATOR PEDAL POSITION (APP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION [SKYACTIV-G 2.5T].)
2	Wastegate valve position sensor (See WASTEGATE VALVE POSITION SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See WASTEGATE VALVE POSITION SENSOR INSPECTION [SKYACTIV-G 2.5T].)
3	A/F sensor (See AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See AIR FUEL RATIO (A/F) SENSOR INSPECTION [SKYACTIV-G 2.5T].)
4	Engine oil pressure sensor/Engine oil temperature sensor (See ENGINE OIL PRESSURE SENSOR/ENGINE OIL TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See ENGINE OIL PRESSURE SENSOR INSPECTION [SKYACTIV-G 2.5T].) (See ENGINE OIL TEMPERATURE SENSOR INSPECTION [SKYACTIV-G 2.5T].)
5	CKP sensor (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See CRANKSHAFT POSITION (CKP) SENSOR INSPECTION [SKYACTIV-G 2.5T].)
6	Engine oil level sensor (See ENGINE OIL LEVEL SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See ENGINE OIL LEVEL SENSOR INSPECTION [SKYACTIV-G 2.5T].)
7	HO2S (See HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See HEATED OXYGEN SENSOR (HO2S) INSPECTION [SKYACTIV-G 2.5T].)
