BOOST AIR TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2]

id0140z7216600

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

3.  Remove the fastener.

ac5wzw00008669

4.  Remove the charge air cooler duct (RH).

5.  Disconnect the boost air temperature sensor connector.

ac5wzw00008670

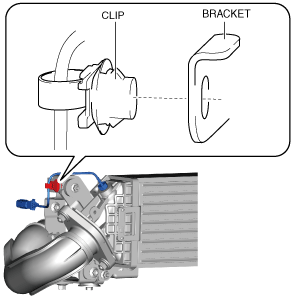

6.  Remove the clip from the bracket.

ac5wzw00008671

7.  Remove the boost air temperature sensor.

ac5wzw00008672

8.  Install in the reverse order of removal.
