WHEEL HUB, STEERING KNUCKLE INSPECTION
id031100800300
Wheel Bearing Excessive Play Inspection
1. Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

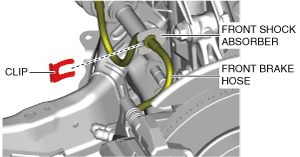

2. Remove the clip from the front shock absorber.
am6xuw00011502
|
3. Remove the front brake hose from the front shock absorber.
4. Remove the front brake caliper component installation bolts.
am6xuw00011503
|
5. Remove the front brake caliper component and suspend it out of the way using a cable.
ac9uuw00008018
|
6. Remove the front disc plate.
am6xuw00011504
|
7. Install the magnetic base and dial gauge as shown in the figure and measure the wheel bearing axial excessive play.
ac5jjw00003204
|
