OIL SEAL (DIFFERENTIAL) REPLACEMENT [D66M-R, D66MX-R]

id0515md160100

Caution
•  The sharp edges of the drive shaft can slice or puncture the oil seal. Be careful when installing the drive shaft to the transaxle.

2WD

1.  Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

2.  Drain the manual transaxle oil. (See MANUAL TRANSAXLE OIL REPLACEMENT [D66M-R, D66MX-R].)

3.  Disconnect the front drive shaft (LH) from the manual transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

4.  Disconnect the front drive shaft (RH) from the manual transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

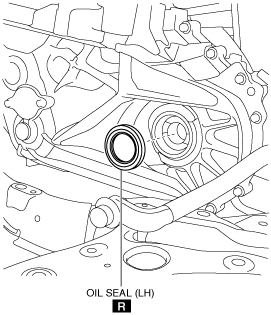

5.  Remove the oil seal (LH).

am6zzw00015624

6.  Remove the oil seal (RH).

am6zzw00016454

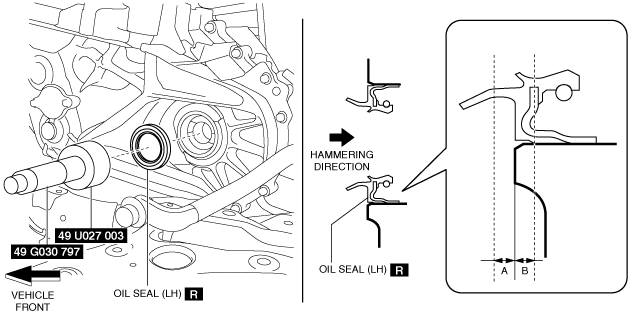

7.  Using the SSTs and a hammer, install a new oil seal (LH).

am6zzw00014592

A: 0.3 mm {0.01 in}
B: 0.3 mm {0.01 in}

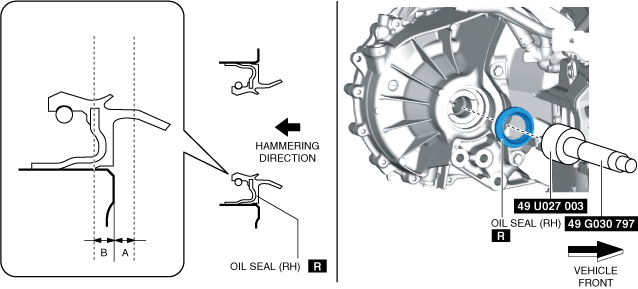

8.  Using the SSTs and a hammer, install a new oil seal (RH).

am6zzw00016455

A: 0.3 mm {0.01 in}
B: 0.3 mm {0.01 in}

9.  Coat the lip of each oil seal with transaxle oil.

10.  Connect the front drive shaft (RH) to the manual transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

11.  Connect the front drive shaft (LH) to the manual transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

12.  Add the specified amount of specified transaxle oil. (See MANUAL TRANSAXLE OIL REPLACEMENT [D66M-R, D66MX-R].)

13.  Install the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)


4WD

1.  Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

2.  Drain the manual transaxle oil. (See MANUAL TRANSAXLE OIL REPLACEMENT [D66M-R, D66MX-R].)

3.  Disconnect the front drive shaft (LH) from the manual transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

4.  Remove the front drive shaft (RH). (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

5.  Remove the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION.)

6.  Remove the front crossmember component and No.1 engine mount rubber as a single unit. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION.)

7.  Remove the transfer. (See TRANSFER REMOVAL/INSTALLATION [D66MX-R].)

8.  Remove the oil seal (LH).

am6zzw00015624

9.  Remove the oil seal (RH).

am6zzw00016456

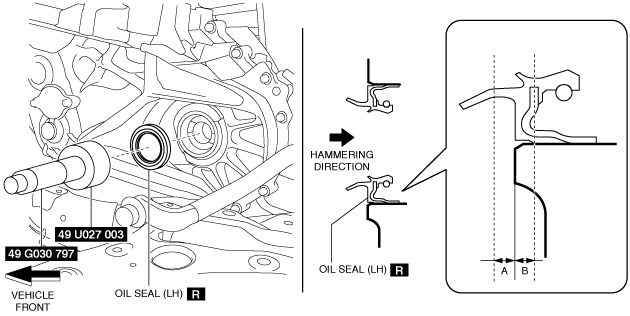

10.  Using the SSTs and a hammer, install a new oil seal (LH).

am6zzw00014605

A: 0.3 mm {0.01 in}
B: 0.3 mm {0.01 in}

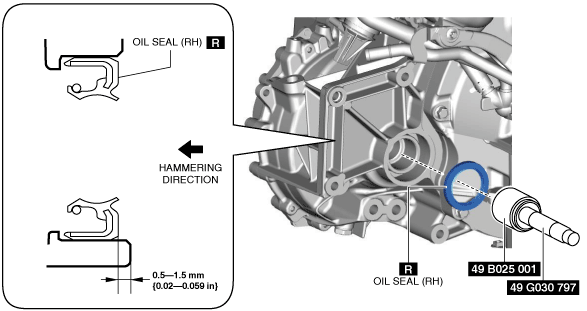

11.  Using the SSTs and a hammer, install a new oil seal (RH).

am6zzw00016457

12.  Coat the lip of each oil seal with transaxle oil.

13.  Install the transfer. (See TRANSFER REMOVAL/INSTALLATION [D66MX-R].)

14.  Install the front crossmember component and No.1 engine mount rubber as a single unit. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION.)

15.  Install the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION.)

16.  Install the front drive shaft (RH). (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

17.  Connect the front drive shaft (LH) to the manual transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

18.  Add the specified amount of specified transaxle oil. (See MANUAL TRANSAXLE OIL REPLACEMENT [D66M-R, D66MX-R].)

19.  Install the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)
