OIL SEAL (DIFFERENTIAL) REPLACEMENT [FW6A-EL]
id0517h1118800
Transaxle Case Side
1. Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)
2. Drain the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [FW6A-EL].)
3. Disconnect the front drive shaft (LH) from the transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)
4. Remove the oil seal using a tape-wrapped flathead screwdriver.
ac5uuw00004637
|

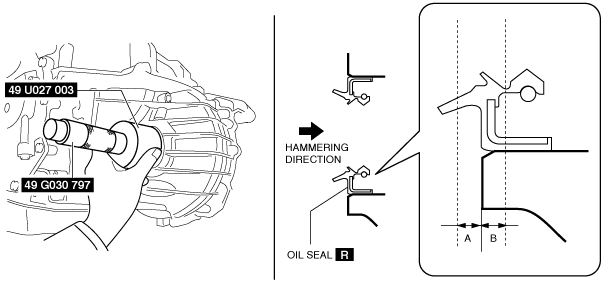

5. Using the SSTs and a hammer, install a new oil seal.
ac5uuw00006507
|
6. Coat the lip of the oil seal with ATF.
7. Connect the front drive shaft (LH) to the transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)
8. Add the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [FW6A-EL].)
9. Install the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)
10. Perform the “Mechanical System Test”. (See MECHANICAL SYSTEM TEST [FW6A-EL].)
Converter Housing Side
1. Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)
2. Drain the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [FW6A-EL].)
3. Disconnect the front drive shaft (RH). (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)
4. Remove the oil seal using a tape-wrapped flathead screwdriver.
ac5uuw00004639
|

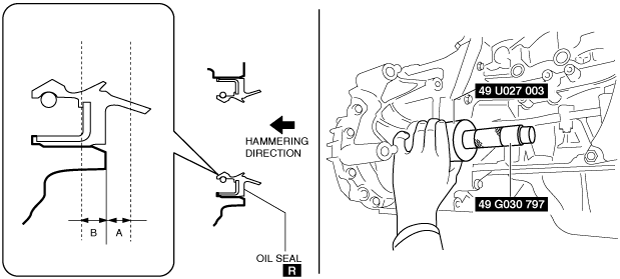

5. Using the SSTs and a hammer, install a new oil seal.
ac5uuw00006508
|
6. Coat the lip of the oil seal with ATF.
7. Connect the front drive shaft (RH). (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)
8. Add the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [FW6A-EL].)
9. Install the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)
10. Perform the “Mechanical System Test”. (See MECHANICAL SYSTEM TEST [FW6A-EL].)
